colorSENSOR CFO

Powerful controllers for precise color measurement

colorSENSOR CFO100/200/250

The colorSENSOR CFO is a new controller for precise color detection in industrial measurement tasks. The CFO series is characterized by high color accuracy, modern interfaces and intuitive operation. CFS sensors with integrated fiber optics are connected to the controller, which can be adapted for different measurement tasks. The colorSENSOR CFO is used for color detection on interior parts such as headrests, packaging inspection or sorting by color of crown caps, closures or labels. The colorSENSOR replaces the models of the LT series.

Contact

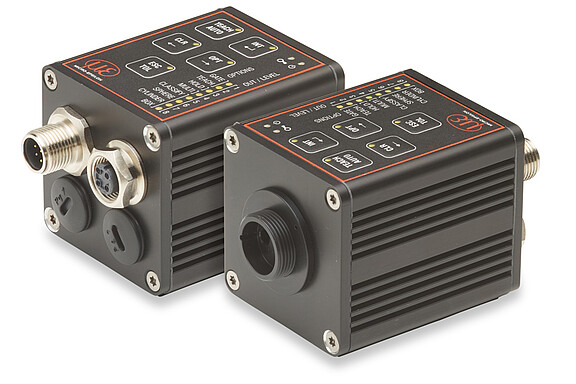

Universal True Color Controller

The CFO100 is ready for precise color measurements in automation environments. Its high color accuracy enables reliable recognition of the slightest color differences. Due to a measuring rate of 10 kHz, the CFO100 can also be used to monitor dynamic processes.

Characteristics

  1. Measurement speed: max. 10kHz

  2. Color memory: 256 colors in 6 color groups

  3. Color distance: ΔE ≤1.0

  4. Repeatability: ΔE ≤ 0.5

  5. Intuitive setup via web interface

High precision True Color controller

The CFO200 is designed for high performance color measurements. With a measuring rate of 30 kHz, even dynamic high speed production processes can be monitored reliably. High repeatability enables the reliable detection of even the slightest color differences. The color memory offers teach-in of up to 320 colors in 254 color groups.

Characteristics

  1. Measurement speed: max. 30 kHz

  2. Color memory: 320 colors in 254 color groups

  3. Color distance: ΔE ≤ 0.6

  4. Repeatability ΔE ≤ 0.3

  5. 8 switching outputs

  6. Intuitive setup via web interface

  7. Integration in Profinet, EthernetIP or EtherCAT via Modbus + Gateway

colorSENSOR for fast output of measurement values

The colorSENSOR CFO250 is a high-performance controller for precise color recognition in industrial measurement tasks. The internal evaluation of taught-in color values as well as the output via the digital switching outputs takes place at a speed of up to 30 kHz.

Using a simplified 3-byte protocol, the unweighted raw data can also be transmitted directly to a PLC or machine system in Lab or XYZ at up to 500 Hz via a UDP, RS232 or USB interface.

Characteristics

  1. Measurement value output (Lab/XYZ) up to 500 Hz

  2. Edge or level trigger for controlling the measurement value output

  3. Measurement speed: max. 30 kHz

  4. Color memory: 320 colors in 254 color groups

  5. Color distance: ΔE ≤ 0.6

  6. Repeatability: ΔE ≤ 0.3

  7. 8 switching outputs

  8. Intuitive setting via web interface

  9. Integration in Profinet, EthernetIP or EtherCAT via Modbus + Gateway
