surfaceCONTROL - 3D snapshot sensor


100% inline inspection at production cycle speed

Highly precise, even for the smallest details!

Fast, high-resolution 3D measurement - for precise results and zero time loss

3D snapshot sensors for geometry, form and surface inspection

Almost any surface: surfaceCONTROL 3D snapshot sensors capture matte, diffusely reflecting surfaces over the entire area, without contact and with high precision. A single exposure produces calibrated, high-resolution 3D data for geometric measurements, surface inspections and industrial quality control.

Fast measurements: Thanks to short acquisition and processing times as well as high Z-axis precision, the sensors are ideal for demanding measurement and inspection tasks inline, at-line or on a robot.

Compatible and SMART: Depending on the size of the measuring object, resolution requirements and integration concept, various models are available - from compact 3D snapshot sensors to smart all-in-one solutions with integrated evaluation and direct measurement value output.

Get in touch with us!
Download now: catalogs, manuals, software

Model overview

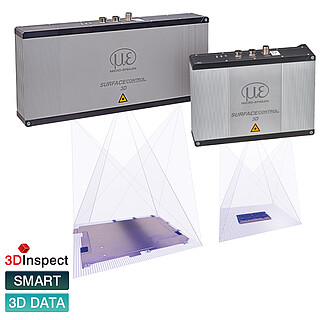

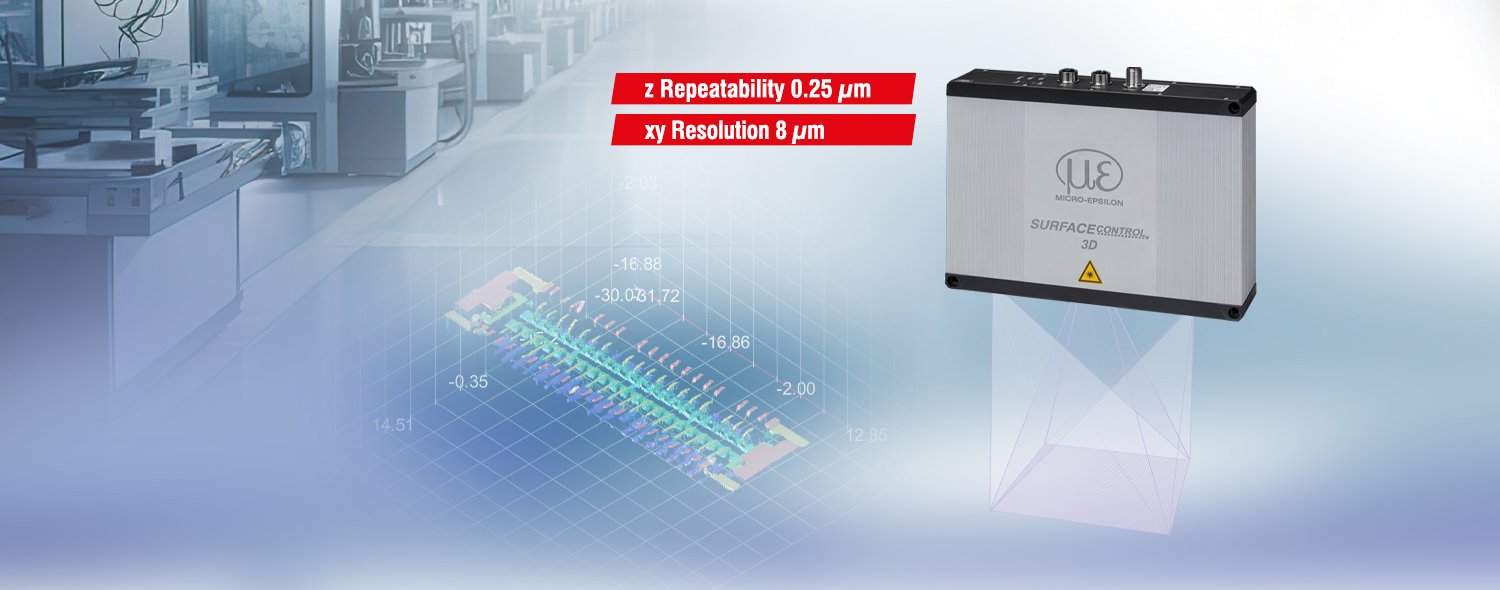

3D snapshot sensor surfaceCONTROL 3D 3560
surfaceCONTROL 3D 3560

Fully integrated 3D sensor for maximum speed and precision

Measuring range: 29.5 - 245 mm
Repeatability: 0.25 µm
Acquisition time: from 0.2 s

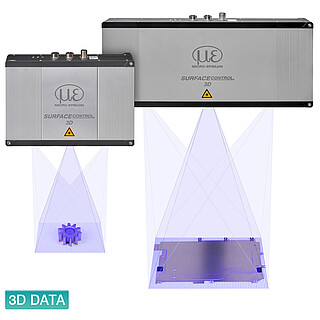

3D snapshot sensor surfaceCONTROL 3D 3200 / 3500
surfaceCONTROL 3D 3200/3500

3D sensors for flexible integration with an excellent price-performance ratio

Measuring range: 29.5 - 245 mm
Repeatability: 0.25 µm
Acquisition time: from 0.2 s

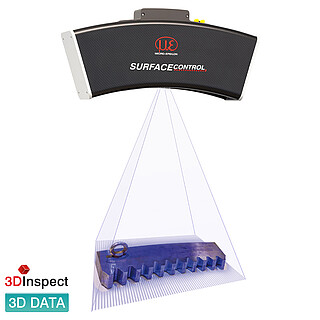

3D snapshot sensor surfaceCONTROL 3D 2600
surfaceCONTROL 3D 2600

3D sensors for large measuring fields

Measuring range: 260 - 650 mm
Repeatability: 0.5 µm
Acquisition time: from 0.25 s
logo

Characteristics

  1. Full-field 3D acquisition with a single snapshot
  2. Non-contact measurement for inline, at-line and robot applications
  3. Short acquisition times for fast inspection processes
  4. High Z-axis precision for detecting the smallest height differences
  5. High lateral resolution for fine structures and details
  6. Calibrated 3D point clouds for precise evaluations
  7. Easy integration via GigE Vision, GenICam and 3D SDK
  8. SMART evaluation with 3DInspect for selected models
  9. No laser protection required due to blue LED technology
[{"activity":"US_ME_R0-NCSC","address":"8120 Brownleigh Dr.\r\nRaleigh, NC 27617","central":false,"comment":"CT, DC, DE, MA, MD, ME,\r\nNH, NJ, NY, PA, RI, VT","companyName":"Micro-Epsilon America | East Regional Office","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1811},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1653},"mobile":"919 400 3845","name":"Efrain Arredondo","phone1":"919 787 9707","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11855,"type":null,"uid":116,"usStates":"14,15,32,31,29,40,41,43,51,53,59,16","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R2-Mid-West","address":"1246 Woburn Dr\r\nLemont, IL 60439","central":false,"comment":"IL: 600-619,\r\nIN, KY, MI, OH,\r\nPA: 150-167,\r\nWI: 530-539, 541-545, 549, \r\nWV","companyName":"Micro-Epsilon America | Mid West Regional Office","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"630 243-0997","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1812},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1663},"mobile":"847 420 4781","name":"Steve Sochowski","phone1":"630 243-0980","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":11856,"type":null,"uid":117,"usStates":"23,24,27,33,47,51,64,63","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R3-West","address":"San Clemente, CA 92673","central":false,"comment":"AK, CA, HI, NV, OR, WA","companyName":"Micro-Epsilon America | Western Regional Office","countries":"220","deZip":"","email":"jerry.carayanis@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1813},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1654},"mobile":"","name":"Jerry Carayanis","phone1":"310 729 0954","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":11857,"type":null,"uid":118,"usStates":"2,12,21,39,49,62","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R4-South","address":"Denver, CO 80227","central":false,"comment":"AZ, CO, IA, ID,\r\nIL: 620-629, \r\nKS, LA, MN, MO, MT, ND, NE, NM, OK, SD, TX, UT,\r\nWI: 540, 546-548, \r\nWY","companyName":"Micro-Epsilon America | Central Regional Office","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1814},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1655},"mobile":"919 412 3620","name":"Friedrich \u0022Fritz\u0022 Gebessler","phone1":"","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":11859,"type":null,"uid":119,"usStates":"4,13,25,22,23,26,28,34,36,37,45,38,42,48,55,57,58,64,65","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R5-Southeast","address":"8120 Brownleigh Dr.\r\nRaleigh NC 27617","central":false,"comment":"AL, AR, FL, GA, MS, NC, \r\nSC, TN, VA","companyName":"Micro-Epsilon America | South East Regional Office","countries":"220","deZip":"","email":"tim.prentice@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1815},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1656},"mobile":"","name":"Tim Prentice","phone1":"919 649 9805","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":11860,"type":null,"uid":120,"usStates":"1,5,18,19,35,44,54,56,61","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R6-Northern","address":"4749 Bennett Drive, Suite J\r\nLivermore, CA 94551","central":false,"comment":"CA: 932, 934, 936 - 961 (Northern Cal)","companyName":"Micro-Epsilon America | Northern California Direct Office","countries":"220","deZip":"","email":"holger.kopp@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"925 371 5673","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":61872},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":61871},"mobile":"","name":"Holger Kopp","phone1":"984 888 6555","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":11861,"type":null,"uid":305,"usStates":"12","website":"www.micro-epsilon.com","worldwide":true},{"activity":"USREP_IRI","address":"9415 West Forest Home ave\r\nSuite 101\r\nWI 53130","central":false,"comment":"IL","companyName":"Instrumentation Resources","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"815 520-0344","name":"Tim Fauser","phone1":"952-797-0220","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11805,"type":null,"uid":162,"usStates":"23","website":"www.irisensors.com","worldwide":true},{"activity":"USREP_TandM-Instruments","address":"15902 Soleil Ct\r\nAustin, TX 78734","central":false,"comment":"LA, OK, TX","companyName":"T\u0026M Instruments","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"512-532-6130","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"T\u0026M Instruments","phone1":"512-772-1553","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11806,"type":null,"uid":171,"usStates":"28,48,57","website":"www.tandm.net","worldwide":true},{"activity":"USREP_Process-Technology_NM","address":"3301 Wellington Place\r\nFarmington, NM 87402","central":false,"comment":"NM","companyName":"Process Technology, Inc.","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"505 948 3302","name":"Josh Gordon","phone1":"","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11807,"type":null,"uid":169,"usStates":"42","website":"www.process-tech.com","worldwide":true},{"activity":"USREP_Process-Technology","address":"4084 South 300 West\r\nSalt Lake City, UT 84107","central":false,"comment":"ID, MT, UT, WY","companyName":"Process Technology, Inc.","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"385 322 3053","name":"Mike Hallenbeck","phone1":"801 264 1114","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11808,"type":null,"uid":168,"usStates":"22,37,58,65","website":"www.process-tech.com","worldwide":true},{"activity":"USREP_Analectro","address":"3219 Route 38, Suite 2\r\nMt. Laurel, NJ 08054","central":false,"comment":"DC, DE, MD, NJ\r\nPA: 168 - 196","companyName":"Analectro","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"856 795 4597","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Al Reithmeier, Kevin Corcoran","phone1":"856 795 6676","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11809,"type":null,"uid":154,"usStates":"16,15,31,41,51","website":"www.analectro.com","worldwide":true},{"activity":"USREP_Dempsco","address":"7015 Corporate Way\r\nDayton, OH 45459","central":false,"comment":"KY, IN, WV, \r\nOH: 430-433, 437-459\r\nPA: 150-167","companyName":"Dempsco","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"937 434 8860","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Kurt Jacoby, Chris Jacoby","phone1":"937 436 1000","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11810,"type":null,"uid":160,"usStates":"27,24,63,47,51","website":"www.dempsco.com","worldwide":true},{"activity":"USREP_Preferred_Technical_Resources","address":"28525 Beck Road, Suite 109\r\nWixom, MI 48393","central":false,"comment":"MI, OH: 434 - 436","companyName":"Preferred Technical Resources","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"248 668 9059","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Philip Theaker, John Callaghan","phone1":"248 668 9051","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11811,"type":null,"uid":167,"usStates":"33,47","website":"www.ptrsales.com","worldwide":true},{"activity":"USREP_MCT_RAM","address":"2 W Main St, Suite 300\r\nVictor, NY 14564","central":false,"comment":"NY 120 - 123, 128 - 149","companyName":"MCT\/RAM - Corporate Office","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"585 461 2114","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"John Saporito","phone1":"585 461 2110","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11812,"type":null,"uid":165,"usStates":"43","website":"www.mctram.com","worldwide":true},{"activity":"USREP_MCT_RAM1","address":"4 Marina Lane\r\nE. Patchogue, NY 11772","central":false,"comment":"NY 100 - 119, 124 - 127","companyName":"MCT\/RAM - Lower New York and New York City","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"585-461-2114","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"John Gustafson","phone1":"631-286-7374","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11813,"type":null,"uid":166,"usStates":"43","website":"www.mctram.com","worldwide":true},{"activity":"USREP_IRI","address":"9415 West Forest Home ave\r\nSuite 101\r\nWI 53130","central":false,"comment":"WI: 530 - 539, 541 - 545, 549","companyName":"Instrumentation Resources","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"414- 458-9325","name":"Jon Korus","phone1":"952-797-0220","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11814,"type":null,"uid":163,"usStates":"64","website":"www.irisensors.com","worldwide":true},{"activity":"USREP_IRI","address":"13774 Reimer Drive North \r\nMaple Grove, MN 55311","central":false,"comment":"IA, KS, MN, MO, ND, NE, SD,\r\nWI: 540, 546 - 548","companyName":"Instrumentation Resources","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"952 797 0223","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Tony Marquette","phone1":"952 797 0220","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11815,"type":null,"uid":164,"usStates":"25,26,34,36,45,38,55,64","website":"www.irisensors.com","worldwide":true},{"activity":"USREP_Equipoise","address":"4059 N Haight Ave\r\nPortland, OR 97227-1332","central":false,"comment":"OR, WA","companyName":"Equipoise Technologies, LLC","countries":"220","deZip":"","email":"jerry.carayanis@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Ed Querfeld","phone1":"503 708 9969","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11816,"type":null,"uid":161,"usStates":"49,62","website":"www.equipoisetech.com","worldwide":true},{"activity":"USREP_CASECO","address":"508 Queens Court\r\nFranklin, TN 37064","central":false,"comment":"AL, AR, MS, TN\r\nFL: 324 - 325","companyName":"CASECO","countries":"220","deZip":"","email":"tim.prentice@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"615 591-7399","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"615 210-7311","name":"Tim DiPeri","phone1":"615 591-7399","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11817,"type":null,"uid":159,"usStates":"1,5,35,56,18","website":"www.caseco-inc.com","worldwide":true},{"activity":"USREP_CAL_Industrial_Sales_Co","address":"4749 Bennett Drive, Suite J\r\nLivermore, CA 94551","central":false,"comment":"CA: 932, 934, 936 - 961 (Northern Cal)\r\nNV: 892 - 898","companyName":"CAL Industrial Sales Co.","countries":"220","deZip":"","email":"jerry.carayanis@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"925 371 5673","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Dave Richardson, Bob McCartney","phone1":"925 371 8125","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11818,"type":null,"uid":158,"usStates":"39,12","website":"www.calindustrial.com","worldwide":true}]
Contact
Micro-Epsilon USA Headquarters
919 787 9707
Contact form
Your request for: {product}
* Mandatory fields
Click here to read our data privacy statement.

Non-contact 3D measurement

The measuring object is detected without contact using structured fringe projection. From the acquired image data, the sensor calculates a high-resolution 3D point cloud, which can then be processed further for measurement, inspection and analysis.

Depending on the system concept, the 3D data can be evaluated using 3DInspect, customer-specific software or directly via integrated functions of selected models. Integrated evaluation with automated measurement value output is available for selected variants such as surfaceCONTROL 3D 3560 and surfaceCONTROL 3D 2610.

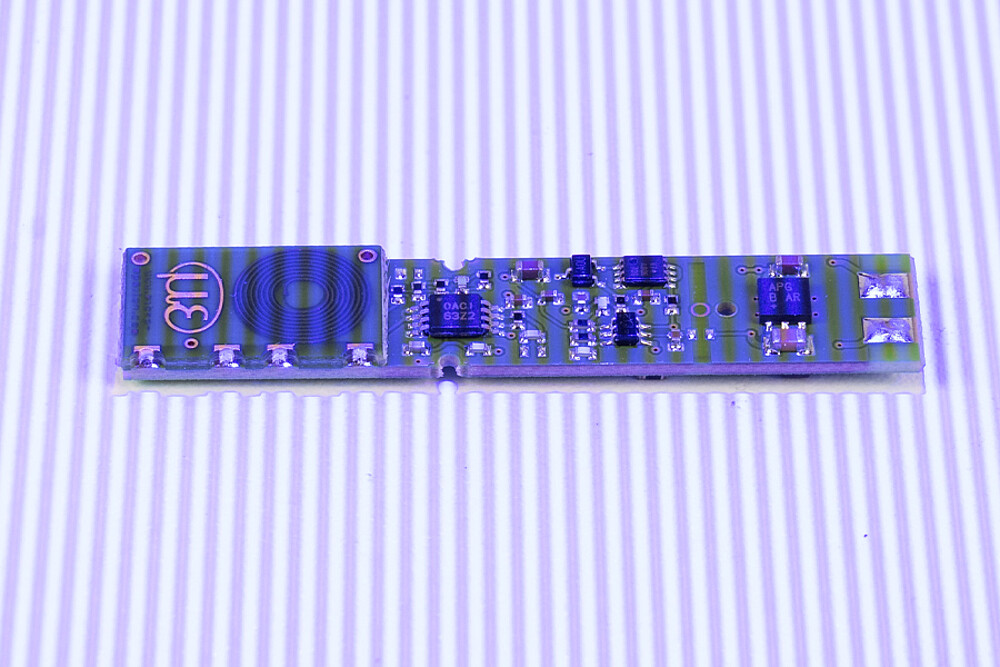

Fringe light projection acquisition
Acquisition using fringe light projection

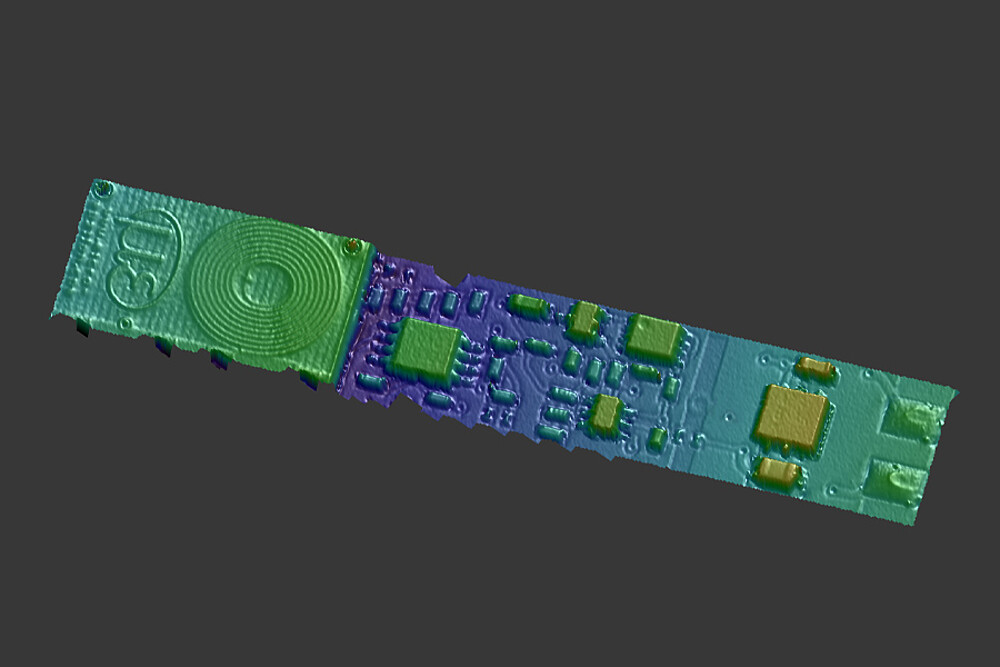

Point cloud processing
Point cloud processing

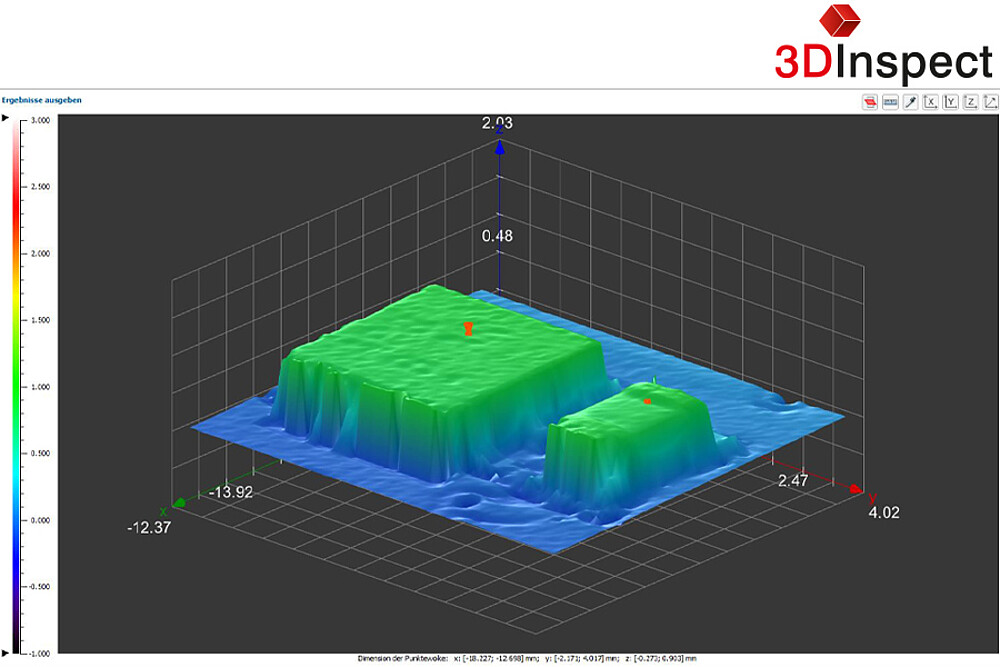

Evaluation with 3DInspect
Evaluation with 3DInspect and automated measurement value output

The right 3D snapshot sensor for every measurement task

The surfaceCONTROL series offers different measuring fields, resolutions and integration options. This makes it easy to select the right sensor based on component size, required precision and desired evaluation method. The measuring fields range from 29.5 mm x 18.0 mm to 650 mm x 495 mm.

logo

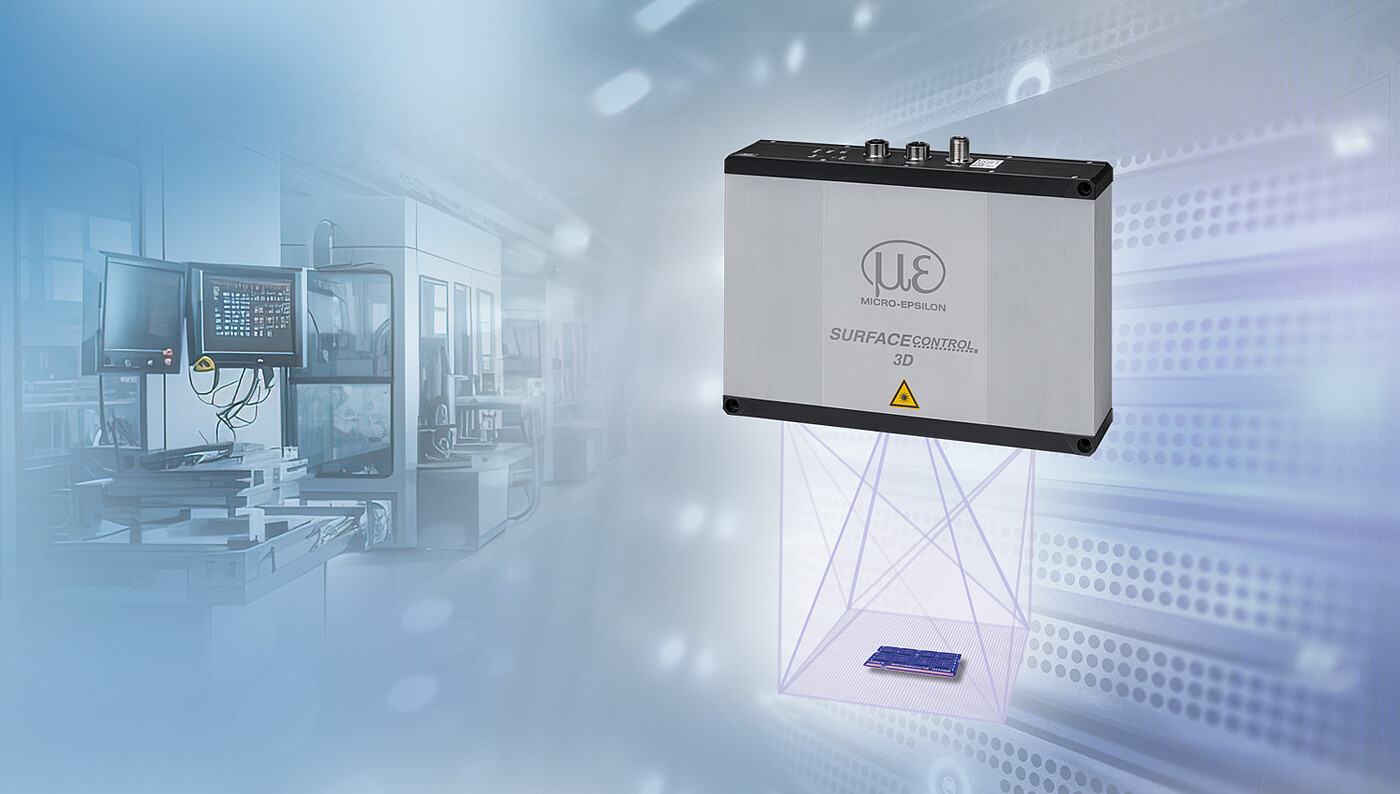

NEW: All-in-one 3D sensor for fast, high-precision 3D snapshot measurements

With the new surfaceCONTROL 3D 3560, the series now offers maximum Z-axis precision, more than 10 million 3D points and SMART evaluation in an all-in-one solution. For easy integration into automated inline inspection processes, the surfaceCONTROL 3D 3560 supports communication via PROFINET, EtherCAT and EtherNet/IP.

Thanks to the integrated evaluation, no additional computing units are required. This reduces wiring and integration effort, relieves the controller and enables direct output of calculated measurement results or simple OK/NOK switching signals for fast process decisions.

surfaceCONTROL 3D 3560

3D snapshot sensors in practice - for geometry, surface and quality inspection

Whether for geometric measurement, surface inspection or quality control, surfaceCONTROL 3D sensors provide full-field 3D data for nominal/actual comparisons, good/bad decisions and process and production monitoring. They enable precise form and geometry inspections, defect detection, assembly inspection and alignment - without contact, objectively and with reduced scrap.

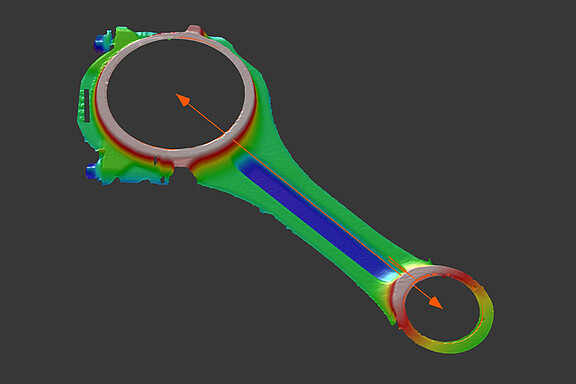

Inspection of flatness, warpage, curvature and form deviations

FORM INSPECTION
Inspection of flatness, warpage, curvature and form deviations.

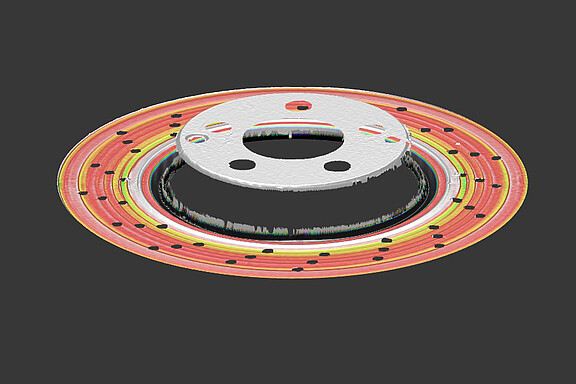

Inspection of the presence, position, height and correct seating of components

ASSEMBLY INSPECTION
Inspection of the presence, position, height and correct seating of components.

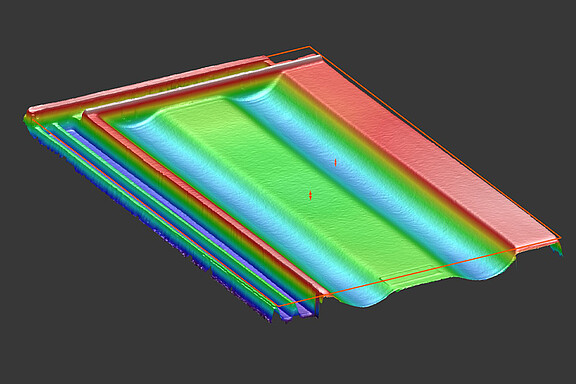

Detection of surface defects, damage and material deviations

DEFECT DETECTION
Detection of local surface defects, damage or material deviations.

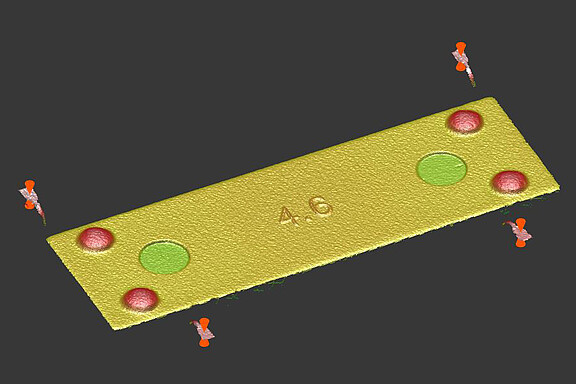

Measurement of height, distances, angles, flatness and volume

GEOMETRY INSPECTION
Measurement of heights, distances, angles, flatness and volume.

Flexible evaluation and integration

Depending on the sensor model and application, two options are available: 3D DATA enables calibrated 3D point clouds to be integrated into customer software. With selected SMART models, measurement programs are created in 3DInspect, stored in the sensor and executed directly. This enables automated output of measurement values and OK/NOK evaluations without an external evaluation unit.

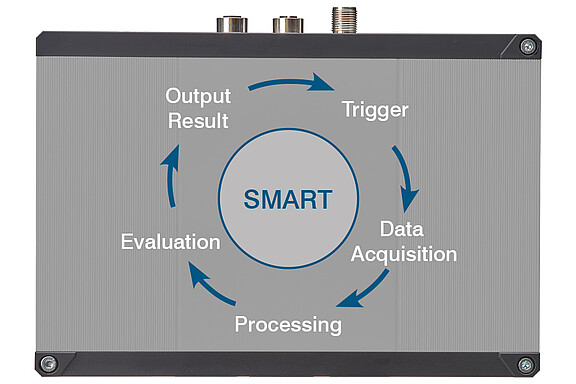

Integrated 3D evaluation in the SMART sensor

SMART sensor with integrated 3D evaluation

  • Integrated data processing in the scanner
  • No additional controller required*
  • Output of measurement results directly to the PLC
  • More than 80 measurement programs for 2D and 3D evaluation, e.g. gap width, angle and step height

*Exception: The SC2610 model requires an external controller for SMART evaluation (e.g. IPU)

Calibrated point clouds for individual integration

Calibrated point clouds for individual integration

  • Output of calibrated point clouds
  • Valid3D: real 3D data instead of 2.5D
  • Evaluation using third-party software or custom software solutions
  • GigE Vision / GenICam standard

Application examples

Flatness measurement of a gear flange
Flatness measurement of a gear flange
Defect detection on smartphone housings
Defect detection on smartphone housings
Surface inspection of car attachments
Surface inspection of car attachments

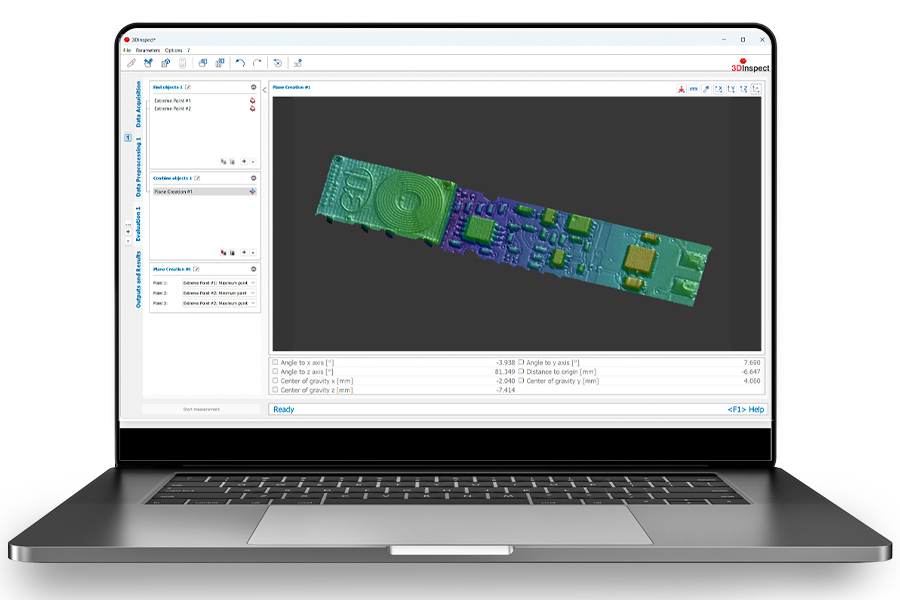

3DInspect - powerful software for parameterization and evaluation

Intuitive user interface
Simple parameterization and convenient creation of 3D measurement programs enable fast and efficient configuration of measurement sequences

Inline operation
The integrated automation interface stores measurement programs directly on the sensor (for SMART sensors) and enables automated measurements without additional control units.

Logging and storage
of 3D data directly in the software

3DInspect for parameterization and evaluation

One software package for all Micro-Epsilon 3D sensors

Parameterization

  • Setting the optimum sensor parameters for the respective measurement task
  • Loading parameter sets
  • Selecting the area to be measured

Data preprocessing

  • Adjusting the point cloud before evaluation, e.g. for reproducible positioning of the point cloud.
  • Refining or applying filters to highlight features, remove irrelevant points or create cross-sections.

Evaluation

  • More than 80 measurement programs for calculating the required measurement values
  • Evaluation and measurement of previously created cross-sections
  • Combination of several programs for complex measurement tasks

Measurement result output

  • Direct evaluation of a measurement value as a result (OK/NOK value); automated output of measurement values or evaluated results (requires the "Automation" license)
  • Switching signals and fieldbus output

3DInspect

One software package for all Micro-Epsilon 3D sensors

Tutorials

3DInspect

Micro Epsilon Logo
Ethernet Connection & Image Adjustment
Chapter 1 / 4

3DInspect

Micro Epsilon Logo
Data Preprocessing
Chapter 2 / 4

3DInspect

Micro Epsilon Logo
3D Data Evaluation
Chapter 3 / 4

3DInspect

Micro Epsilon Logo
Output and Result Configuration
Chapter 4 / 4

Downloads

Operating and installation instructions
