thicknessGAUGE - Compact O-frame for separator film

Compact sensor system for thickness measurement of separator film and battery coating

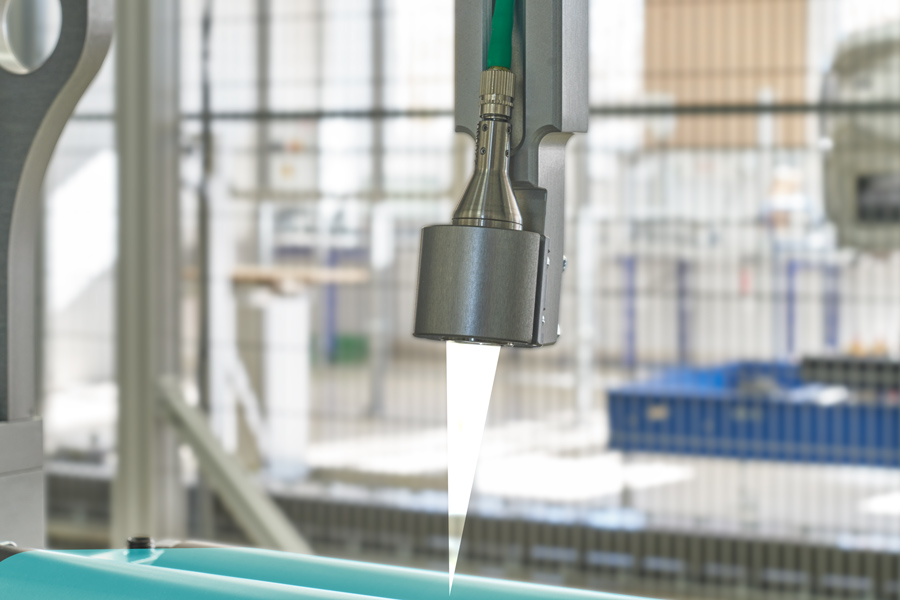

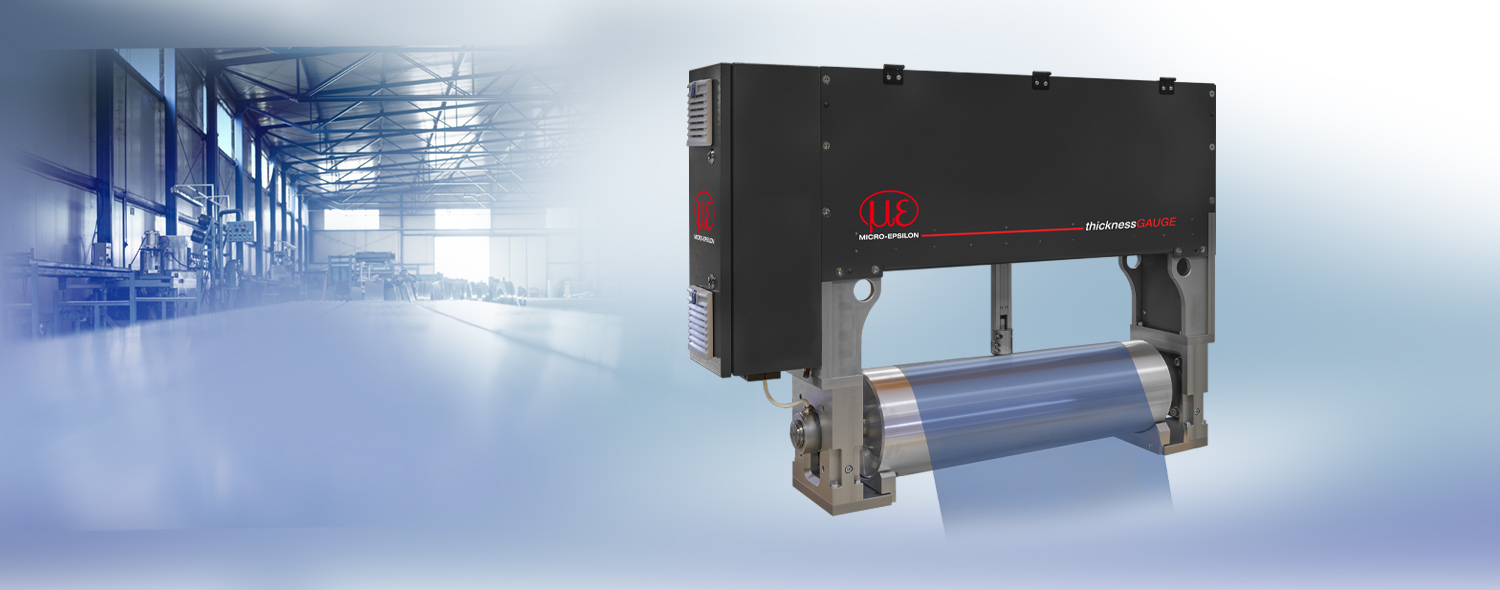

The thicknessGAUGE O.IMS is used for stable thickness measurement of coating on separator film. The system is designed as a compact O-frame and uses a white light interferometer that traverses over the battery film. Thanks to the innovative technology, the thickness measurement is contactless from only one side. Two transport rollers stabilize the film belt.

logo

Characteristics

  1. Sensor technology used: White light interferometer
  2. Compact complete solution for inline thickness measurement
  3. Optimally suited for high-resolution thickness measurement on coated and uncoated battery film and separator film
  4. Material widths up to 1,250 mm
  5. Stable design for highest precision with system accuracy ±0.2 µm
  6. Traversing measurement or fixed track measurement
  7. Fully automatic calibration
  8. Comprehensive software package for data acquisition, signal processing and automation included in scope of delivery
[{"activity":"US_ME_R0-NCSC","address":"8120 Brownleigh Dr.\r\nRaleigh, NC 27617","central":false,"comment":"CT, DC, DE, MA, MD, ME,\r\nNH, NJ, NY, PA, RI, VT","companyName":"Micro-Epsilon America | East Regional Office","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1811},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1653},"mobile":"919 400 3845","name":"Efrain Arredondo","phone1":"919 787 9707","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9295,"type":null,"uid":116,"usStates":"14,15,32,31,29,40,41,43,51,53,59,16","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R2-Mid-West","address":"1246 Woburn Dr\r\nLemont, IL 60439","central":false,"comment":"IL: 600-619,\r\nIN, KY, MI, OH,\r\nPA: 150-167,\r\nWI: 530-539, 541-545, 549, \r\nWV","companyName":"Micro-Epsilon America | Mid West Regional Office","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"630 243-0997","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1812},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1663},"mobile":"847 420 4781","name":"Steve Sochowski","phone1":"630 243-0980","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":9296,"type":null,"uid":117,"usStates":"23,24,27,33,47,51,64,63","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R3-West","address":"San Clemente, CA 92673","central":false,"comment":"AK, CA, HI, NV, OR, WA","companyName":"Micro-Epsilon America | Western Regional Office","countries":"220","deZip":"","email":"jerry.carayanis@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1813},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1654},"mobile":"","name":"Jerry Carayanis","phone1":"310 729 0954","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":9297,"type":null,"uid":118,"usStates":"2,12,21,39,49,62","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R4-South","address":"Denver, CO 80227","central":false,"comment":"AZ, CO, IA, ID,\r\nIL: 620-629, \r\nKS, LA, MN, MO, MT, ND, NE, NM, OK, SD, TX, UT,\r\nWI: 540, 546-548, \r\nWY","companyName":"Micro-Epsilon America | Central Regional Office","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1814},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1655},"mobile":"919 412 3620","name":"Friedrich \u0022Fritz\u0022 Gebessler","phone1":"","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":9299,"type":null,"uid":119,"usStates":"4,13,25,22,23,26,28,34,36,37,45,38,42,48,55,57,58,64,65","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R5-Southeast","address":"8120 Brownleigh Dr.\r\nRaleigh NC 27617","central":false,"comment":"AL, AR, FL, GA, MS, NC, \r\nSC, TN, VA","companyName":"Micro-Epsilon America | South East Regional Office","countries":"220","deZip":"","email":"tim.prentice@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1815},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1656},"mobile":"","name":"Tim Prentice","phone1":"919 649 9805","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":9300,"type":null,"uid":120,"usStates":"1,5,18,19,35,44,54,56,61","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R6-Northern","address":"4749 Bennett Drive, Suite J\r\nLivermore, CA 94551","central":false,"comment":"CA: 932, 934, 936 - 961 (Northern Cal)","companyName":"Micro-Epsilon America | Northern California Direct Office","countries":"220","deZip":"","email":"holger.kopp@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"925 371 5673","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":61872},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":61871},"mobile":"","name":"Holger Kopp","phone1":"984 888 6555","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":9301,"type":null,"uid":305,"usStates":"12","website":"www.micro-epsilon.com","worldwide":true},{"activity":"USREP_IRI","address":"9415 West Forest Home ave\r\nSuite 101\r\nWI 53130","central":false,"comment":"IL","companyName":"Instrumentation Resources","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"815 520-0344","name":"Tim Fauser","phone1":"952-797-0220","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9245,"type":null,"uid":162,"usStates":"23","website":"www.irisensors.com","worldwide":true},{"activity":"USREP_TandM-Instruments","address":"15902 Soleil Ct\r\nAustin, TX 78734","central":false,"comment":"LA, OK, TX","companyName":"T\u0026M Instruments","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"512-532-6130","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"T\u0026M Instruments","phone1":"512-772-1553","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9246,"type":null,"uid":171,"usStates":"28,48,57","website":"www.tandm.net","worldwide":true},{"activity":"USREP_Process-Technology_NM","address":"3301 Wellington Place\r\nFarmington, NM 87402","central":false,"comment":"NM","companyName":"Process Technology, Inc.","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"505 948 3302","name":"Josh Gordon","phone1":"","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9247,"type":null,"uid":169,"usStates":"42","website":"www.process-tech.com","worldwide":true},{"activity":"USREP_Process-Technology","address":"4084 South 300 West\r\nSalt Lake City, UT 84107","central":false,"comment":"ID, MT, UT, WY","companyName":"Process Technology, Inc.","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"385 322 3053","name":"Mike Hallenbeck","phone1":"801 264 1114","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9248,"type":null,"uid":168,"usStates":"22,37,58,65","website":"www.process-tech.com","worldwide":true},{"activity":"USREP_Analectro","address":"3219 Route 38, Suite 2\r\nMt. Laurel, NJ 08054","central":false,"comment":"DC, DE, MD, NJ\r\nPA: 168 - 196","companyName":"Analectro","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"856 795 4597","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Al Reithmeier, Kevin Corcoran","phone1":"856 795 6676","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9249,"type":null,"uid":154,"usStates":"16,15,31,41,51","website":"www.analectro.com","worldwide":true},{"activity":"USREP_Dempsco","address":"7015 Corporate Way\r\nDayton, OH 45459","central":false,"comment":"KY, IN, WV, \r\nOH: 430-433, 437-459\r\nPA: 150-167","companyName":"Dempsco","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"937 434 8860","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Kurt Jacoby, Chris Jacoby","phone1":"937 436 1000","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9250,"type":null,"uid":160,"usStates":"27,24,63,47,51","website":"www.dempsco.com","worldwide":true},{"activity":"USREP_Preferred_Technical_Resources","address":"28525 Beck Road, Suite 109\r\nWixom, MI 48393","central":false,"comment":"MI, OH: 434 - 436","companyName":"Preferred Technical Resources","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"248 668 9059","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Philip Theaker, John Callaghan","phone1":"248 668 9051","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9251,"type":null,"uid":167,"usStates":"33,47","website":"www.ptrsales.com","worldwide":true},{"activity":"USREP_MCT_RAM","address":"2 W Main St, Suite 300\r\nVictor, NY 14564","central":false,"comment":"NY 120 - 123, 128 - 149","companyName":"MCT\/RAM - Corporate Office","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"585 461 2114","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"John Saporito","phone1":"585 461 2110","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9252,"type":null,"uid":165,"usStates":"43","website":"www.mctram.com","worldwide":true},{"activity":"USREP_MCT_RAM1","address":"4 Marina Lane\r\nE. Patchogue, NY 11772","central":false,"comment":"NY 100 - 119, 124 - 127","companyName":"MCT\/RAM - Lower New York and New York City","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"585-461-2114","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"John Gustafson","phone1":"631-286-7374","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9253,"type":null,"uid":166,"usStates":"43","website":"www.mctram.com","worldwide":true},{"activity":"USREP_IRI","address":"9415 West Forest Home ave\r\nSuite 101\r\nWI 53130","central":false,"comment":"WI: 530 - 539, 541 - 545, 549","companyName":"Instrumentation Resources","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"414- 458-9325","name":"Jon Korus","phone1":"952-797-0220","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9254,"type":null,"uid":163,"usStates":"64","website":"www.irisensors.com","worldwide":true},{"activity":"USREP_IRI","address":"13774 Reimer Drive North \r\nMaple Grove, MN 55311","central":false,"comment":"IA, KS, MN, MO, ND, NE, SD,\r\nWI: 540, 546 - 548","companyName":"Instrumentation Resources","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"952 797 0223","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Tony Marquette","phone1":"952 797 0220","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9255,"type":null,"uid":164,"usStates":"25,26,34,36,45,38,55,64","website":"www.irisensors.com","worldwide":true},{"activity":"USREP_Equipoise","address":"4059 N Haight Ave\r\nPortland, OR 97227-1332","central":false,"comment":"OR, WA","companyName":"Equipoise Technologies, LLC","countries":"220","deZip":"","email":"jerry.carayanis@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Ed Querfeld","phone1":"503 708 9969","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9256,"type":null,"uid":161,"usStates":"49,62","website":"www.equipoisetech.com","worldwide":true},{"activity":"USREP_CASECO","address":"508 Queens Court\r\nFranklin, TN 37064","central":false,"comment":"AL, AR, MS, TN\r\nFL: 324 - 325","companyName":"CASECO","countries":"220","deZip":"","email":"tim.prentice@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"615 591-7399","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"615 210-7311","name":"Tim DiPeri","phone1":"615 591-7399","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9257,"type":null,"uid":159,"usStates":"1,5,35,56,18","website":"www.caseco-inc.com","worldwide":true},{"activity":"USREP_CAL_Industrial_Sales_Co","address":"4749 Bennett Drive, Suite J\r\nLivermore, CA 94551","central":false,"comment":"CA: 932, 934, 936 - 961 (Northern Cal)\r\nNV: 892 - 898","companyName":"CAL Industrial Sales Co.","countries":"220","deZip":"","email":"jerry.carayanis@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"925 371 5673","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Dave Richardson, Bob McCartney","phone1":"925 371 8125","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9258,"type":null,"uid":158,"usStates":"39,12","website":"www.calindustrial.com","worldwide":true}]
Contact
Micro-Epsilon USA Headquarters
Contact form
Your request for: {product}
* Mandatory fields
Click here to read our data privacy statement.

Ideal for all types of coated battery and separator film

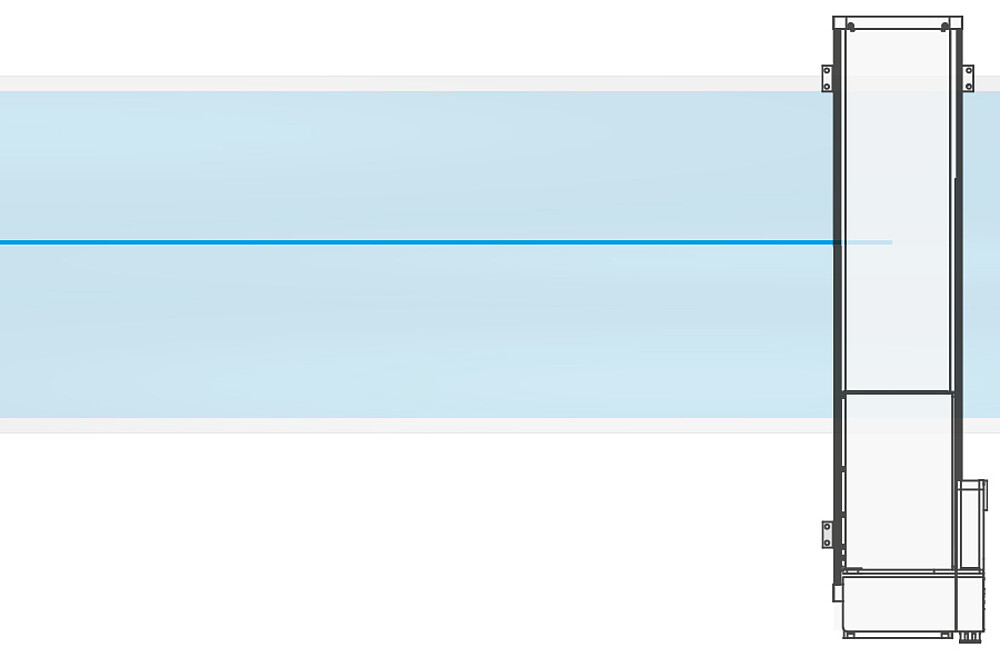

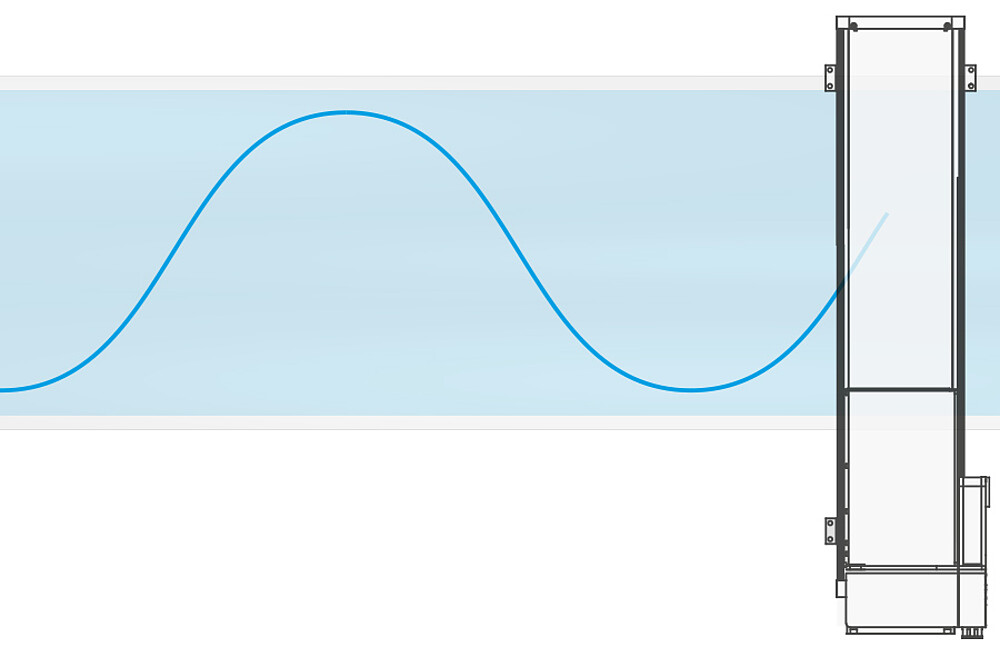

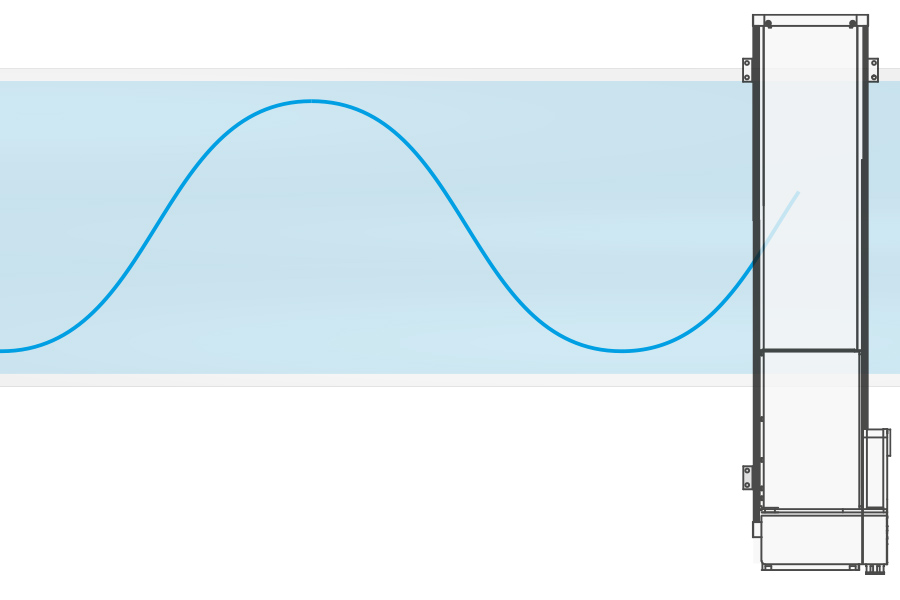

The thicknessGAUGE can be used for fixed track measurements, e.g., for center-line measurements (center thickness) or for thickness measurements on the edges. Alternatively, the sensor system can also be used for traversing thickness measurements. Due to its versatility, the thicknessGAUGE can be used for both intermittent and longitudinally coated films.

Precise measurement of the coating thickness

The compact thicknessGAUGE sensor system can be used for coating thickness measurement of separator film. Equipped with a white light interferometer, the sensor system detects the thin coatings of plastic films with submicrometer accuracy.

Powerful analysis and control software

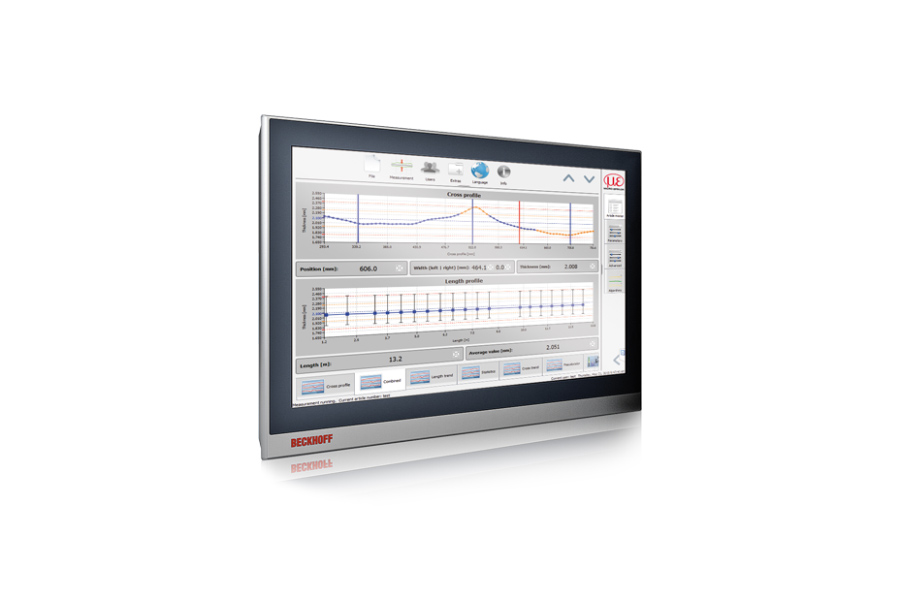

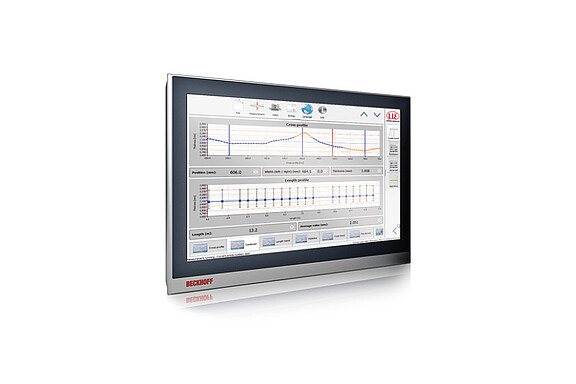

These compact systems are comprised of an integrated linear unit including motor control, a compact bus terminal box, an automatic calibration unit as well as a multi-touch PC with pre-installed software. The software enables different measurement modes such as fixed track thickness measurement at any position, measurement of the thickness profile, measurement of several longitudinal trends, an SPC package and automated verification of the measuring system's capability.
