Structural monitoring & Building material production

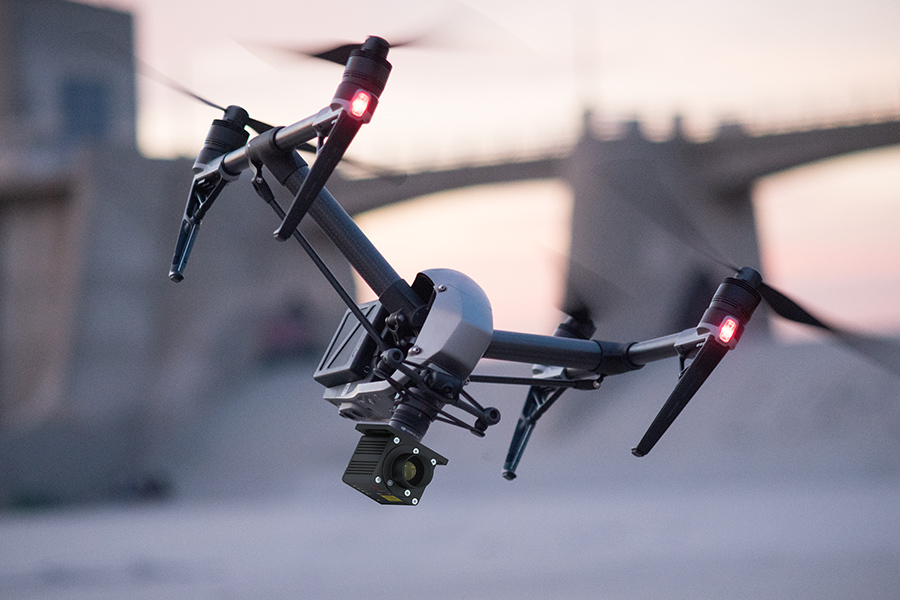

optoNCDT ILR2250 laser distance sensors are used for distance measurements on bridges, buildings and also wind turbines. Their low weight and compact design allow for the sensors to be attached to drones. Aerial measurements not only enable the…

For the automatic cutting of plasterboards, the correct feeding of the boards is crucial for dimensional accuracy. For the detection of the web edges, optoCONTROL laser micrometers are used, which are mounted at the edges of the transport web.…

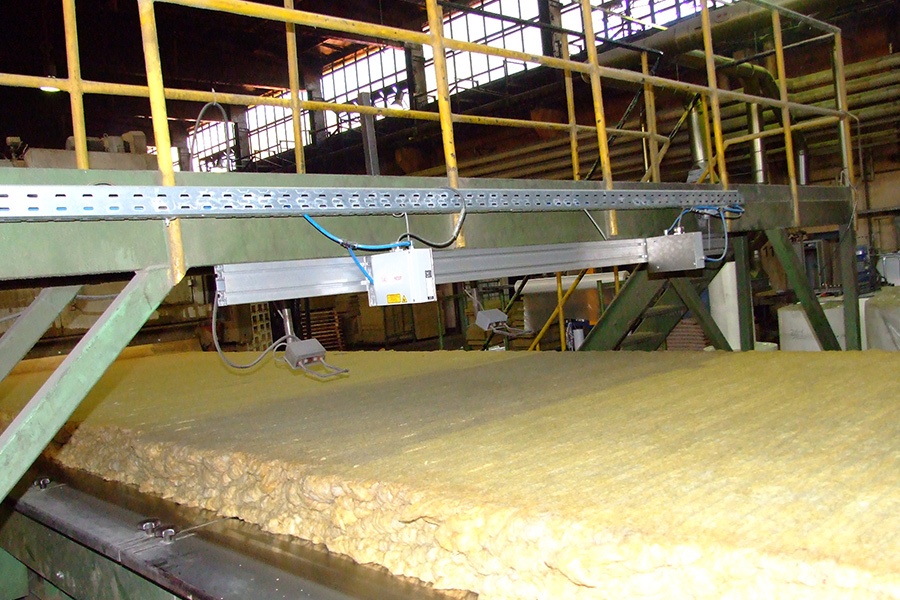

In addition to the homogeneous material structure, thickness is a quality feature for maintaining the insulating properties of mineral wool. At the end of the production line, the webs are trimmed and milled to standard thickness. To optimize the…

Process-related discoloration can occur during the production of cement powder. The color can change to gray or pink which is an indicator of production quality. The powder is transported on a conveyor belt and can be tested after initial…

colorSENSOR CFO gauges are used for the evaluation of industrial water and other liquids. These measure the color of the liquid from the outside based on the transmitted light prinple. Special models also measure from the inside. The sensor’s…

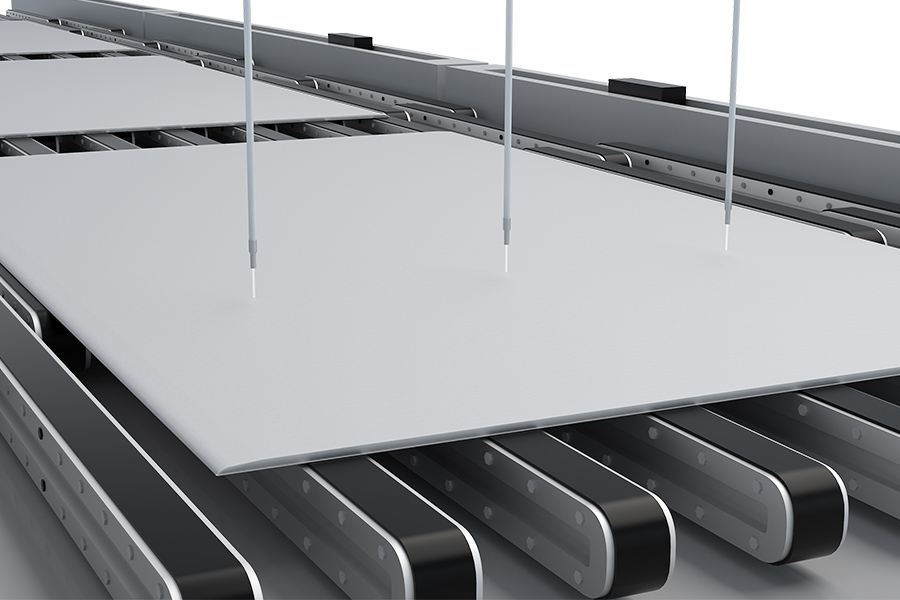

In strip processes for the production of insulation material and plasterboards, colorSENSOR CFO gauges are used to monitor the color. Thanks to their high accuracy, the sensors detect even slight color deviations. Color inspection is used in…

Accurate quantity measurement of bulk material or plastic granulate is a decisive factor for the smooth running of production and logistics processes. In order to avoid production downtimes due to a lack of material, the filling levels in the…

Numerous material tests are performed during the development of high-performance building materials. Inductive displacement sensors from Micro-Epsilon are used for geometric testing. These sensors are extremely robust and impress with their high…

In order to increase safety at safety-relevant points, non-contact infrared pyrometers are installed at pedestrian crossings. Thanks to the large measurement distance, the thermoMETER from Micro-Epsilon records the ground temperature from a safe…

Technical endoscopes from Micro-Epsilon are used wherever preventive or scheduled inspection is required. The endoscopes are suitable for mobile use and are very user-friendly. The XLED PRO DUAL VIEW video endoscope is the preferred tool for…

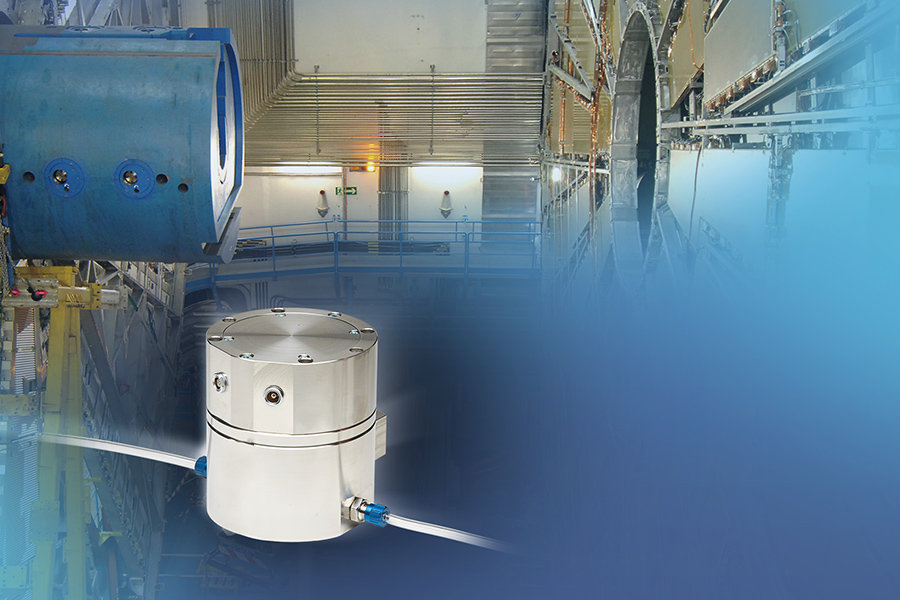

The CHLS4 capacitive hydrostatic levelling system from Micro-Epsilon is based on the hose level principle and is used to monitor changes in the height of building parts and pipe systems. The sensor system detects minute changes in height through…

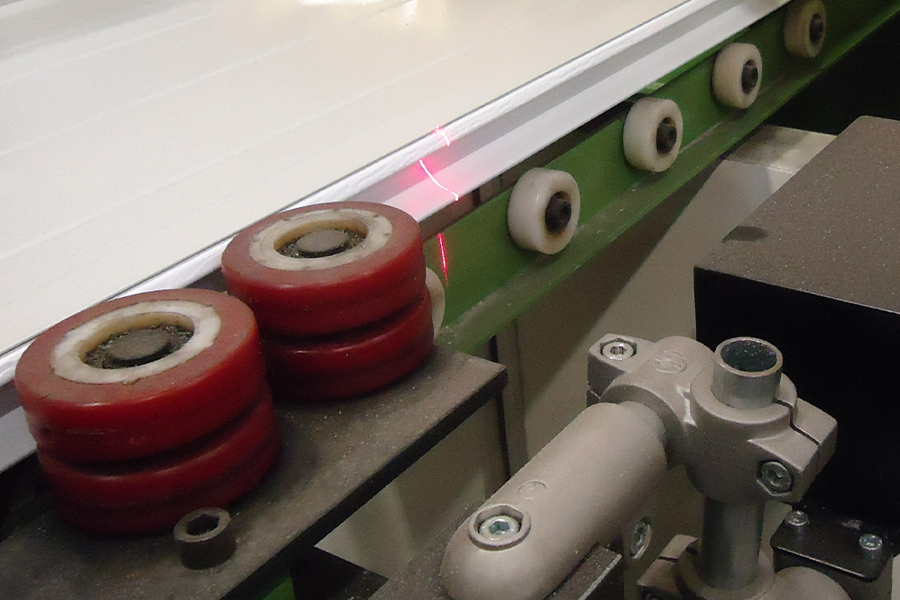

The individual sections of sectional doors are connected with a tongue and groove joint. For a tight and permanently flexible connection, compliance with the nominal dimensions is of decisive importance.Strong temperature differences lead to…

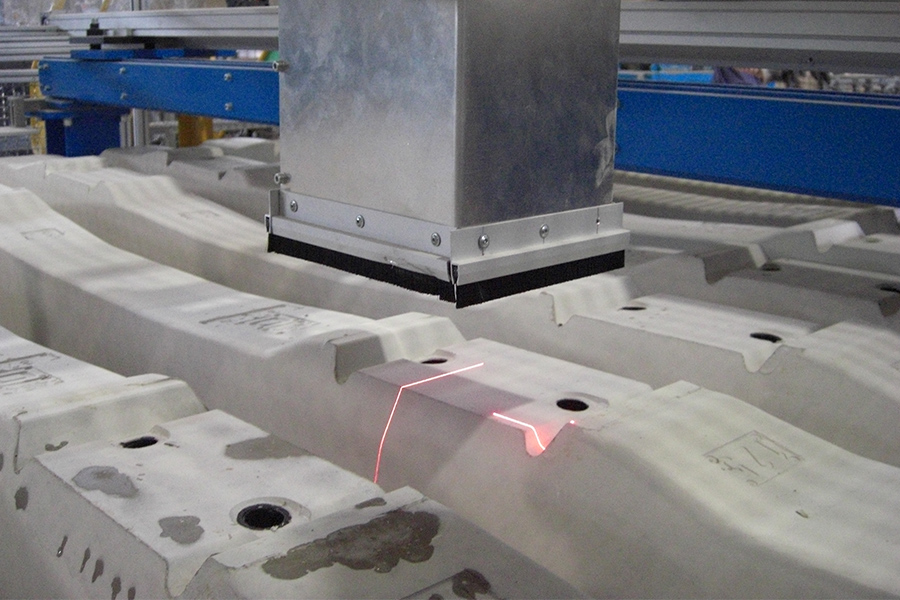

3D measuring systems are used for the inline quality inspection of railway sleepers. The systems consist of a gantry construction mounted on the forming station above the conveyor system. Two scanCONTROL laser profile sensors travel along the…

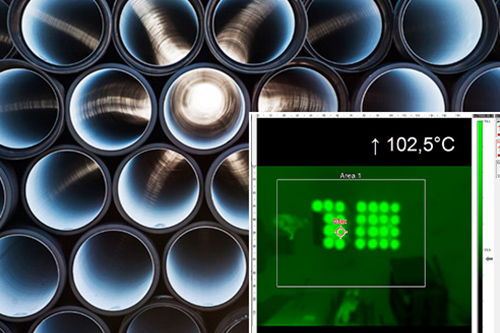

In the production of thermally insulated pipes, the temperature is monitored to prevent damage and fires. Insulation materials often contain hot particles and stones that can cause a fire. Thermal imaging cameras from Micro-Epsilon are therefore…

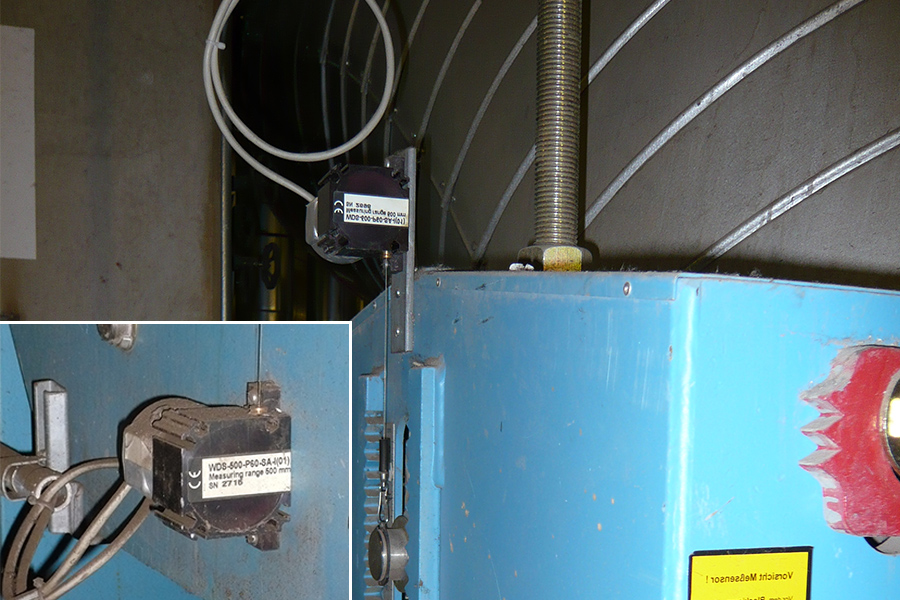

Pipelines in power plants are exposed to high pressures and temperatures. These extreme loads cause the pipes to vibrate and result in thermal expansions of up to 1 m at some points. Constant hangers are used to compensate for these thermal…

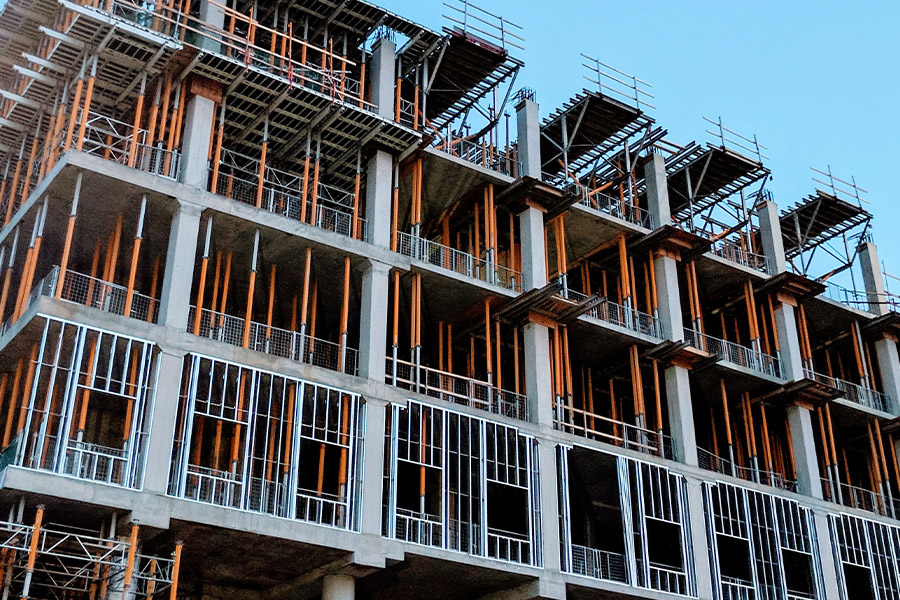

Laser sensors from Micro-Epsilon are used to measure the deflection of concrete slabs during casting. Depending on the accuracy requirements and measuring range, laser triangulation sensors or laser distance sensors are used. These sensors detect…

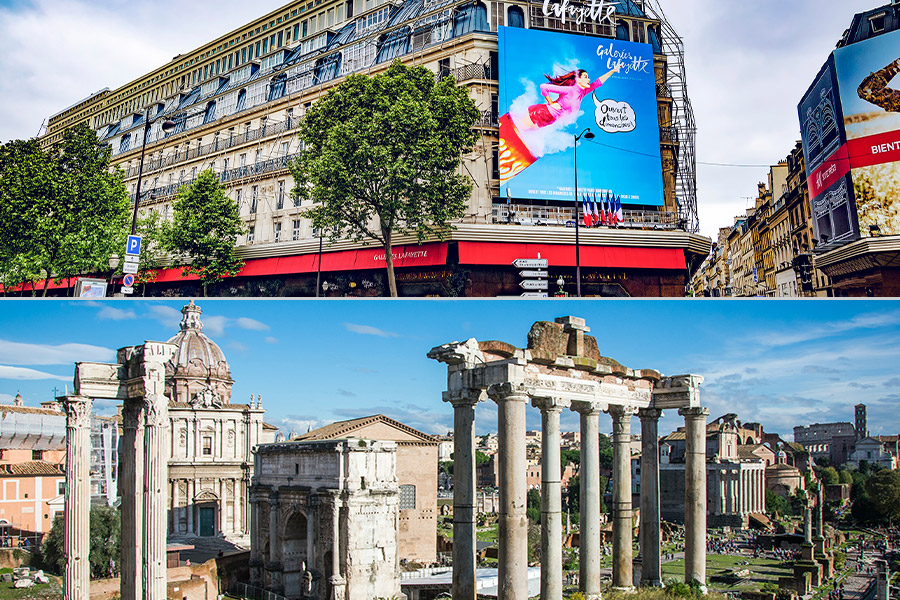

optoNCDT ILR2250 laser sensors are used for distance measurements of listed facades. These sensors provide high measurement accuracy even on weakly reflective surfaces such as masonry. Due to their large measuring range, they measure the distance…

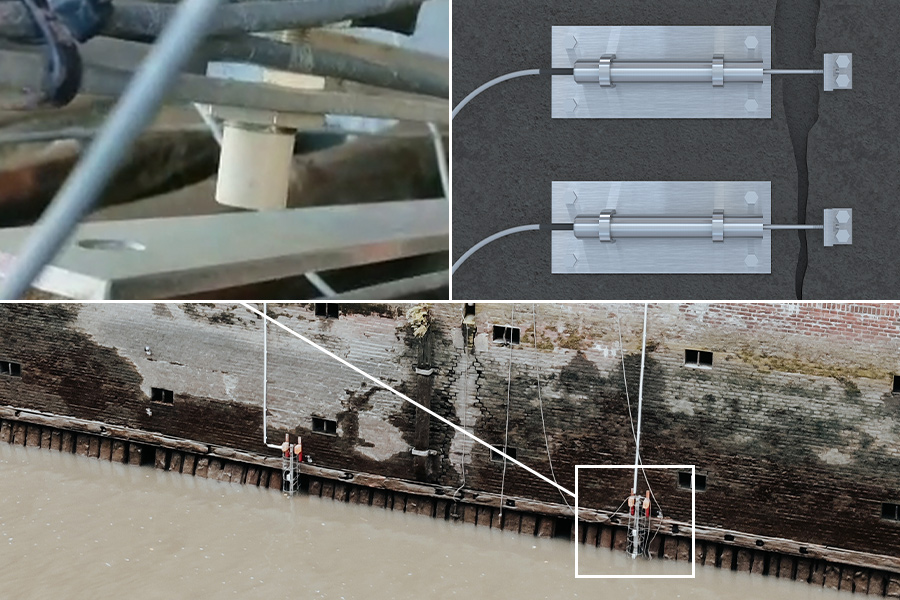

Waterproof eddy current displacement sensors are used to monitor the influence of tides on old buildings. The sensors measure onto a metallic measuring object that is attached to the building. The robust sensor design and additional sealing allow…

For the investigation of component deformations under load, specially designed measuring systems are used, which detect the surface contours in a reactionless way. The measuring system consists of a movable half frame on which two laser distance…

Height-adjustable diving platforms are used in competitive sports to set individual jump heights or identical heights for synchronized divers. String potentiometers from Micro-Epsilon measure the height of the tower and ensure that the tower is…
