Extruder barrel diameter

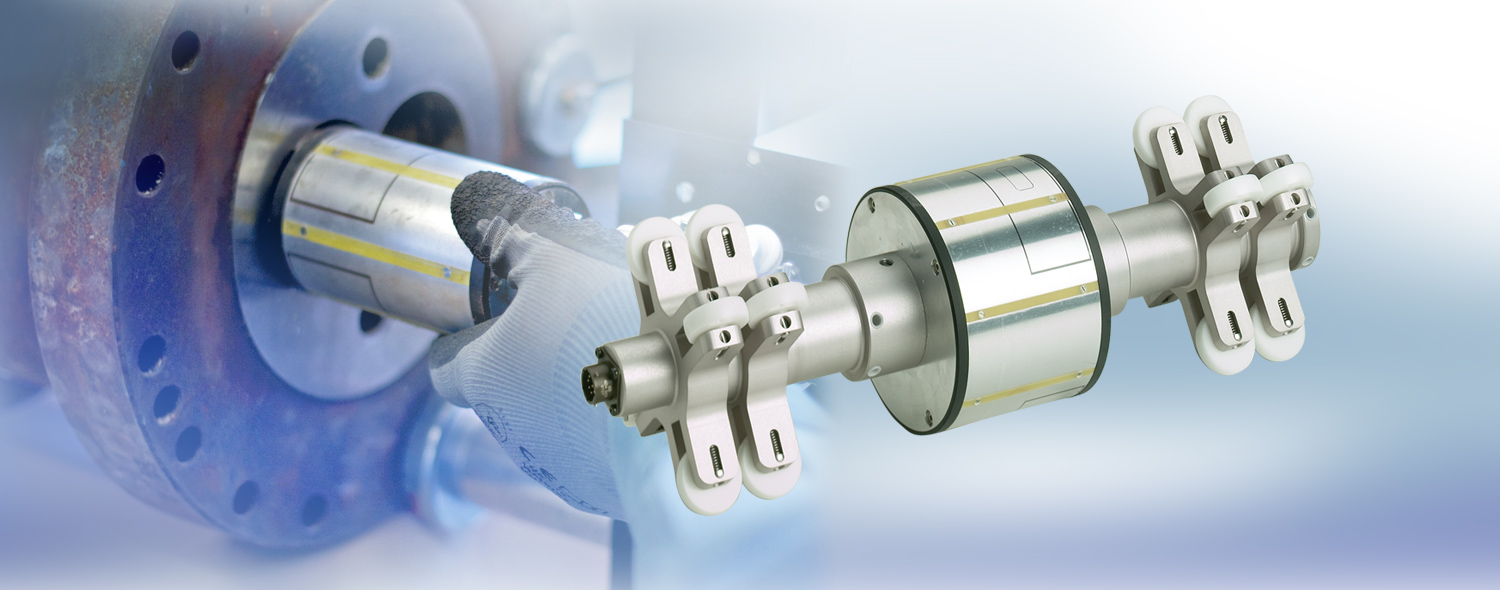

Inspection of the interior diameter of the extruder barrel

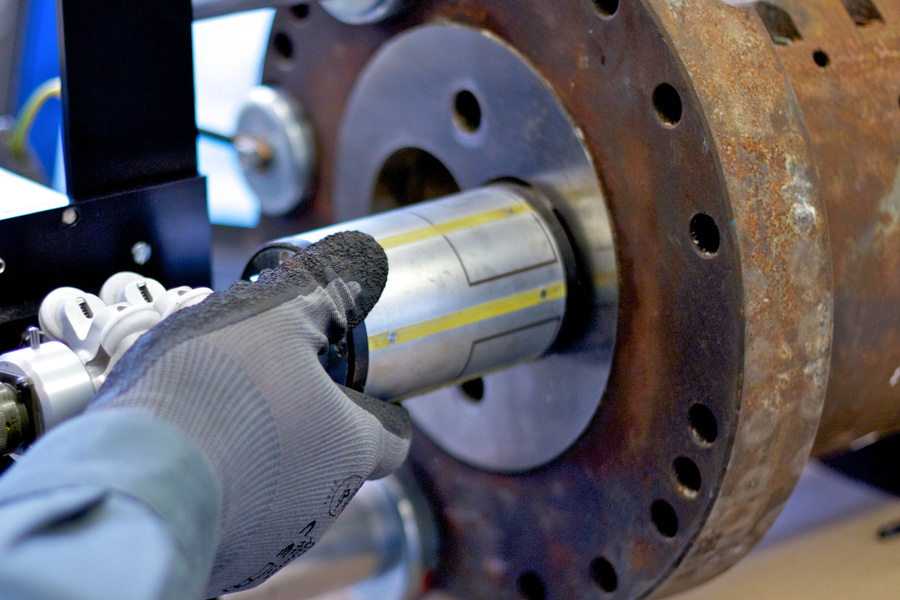

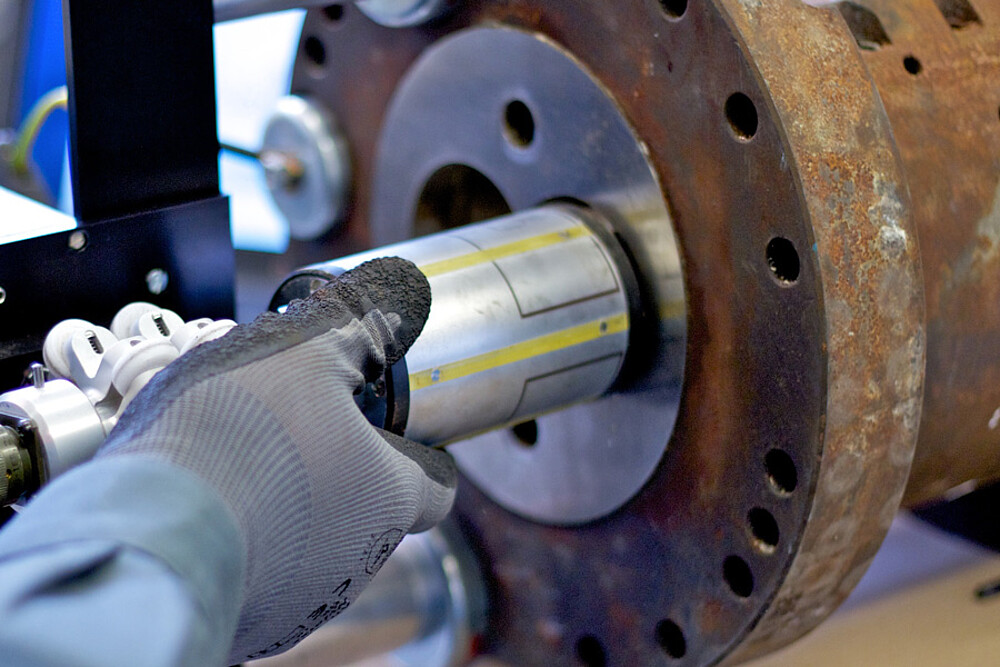

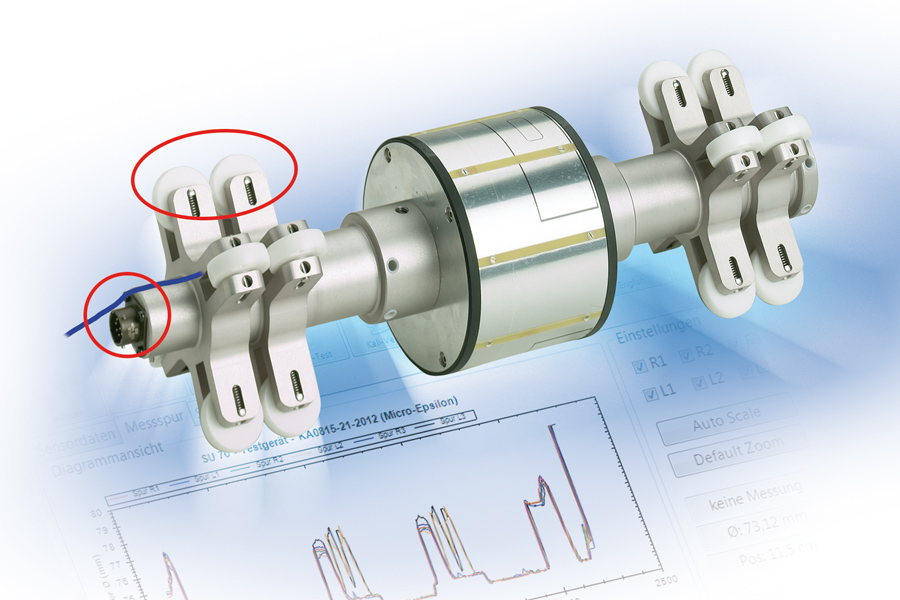

The idiamCONTROL sensor system precisely measures the inner diameter of bore holes such as in extruders in order to determine the wear. The idiamCONTROL is guided into the bore hole and determines the bore hole diameter while being pulled out. Wear-based tolerance violations are automatically displayed and can be output via USB.

logo

Advantages

  1. Touchscreen with user-friendly software for fast evaluation directly next to the extruder
  2. Reliable measurement on up to 6 tracks
  3. Suitable for numerous extruder barrel dimensions from 32 to 180 mm diameter
  4. Diameter is directly displayed

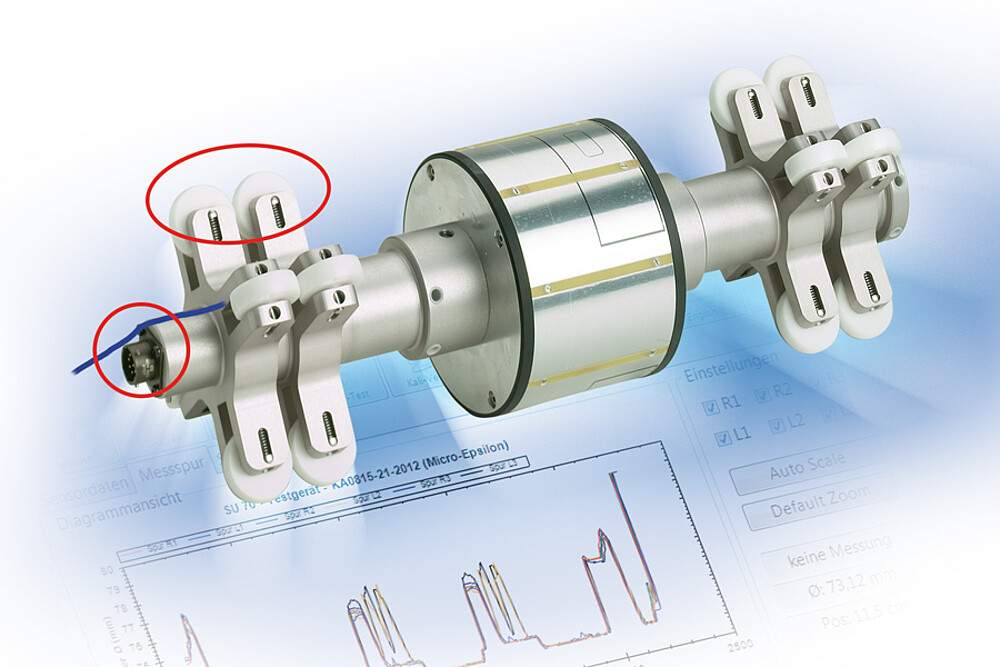

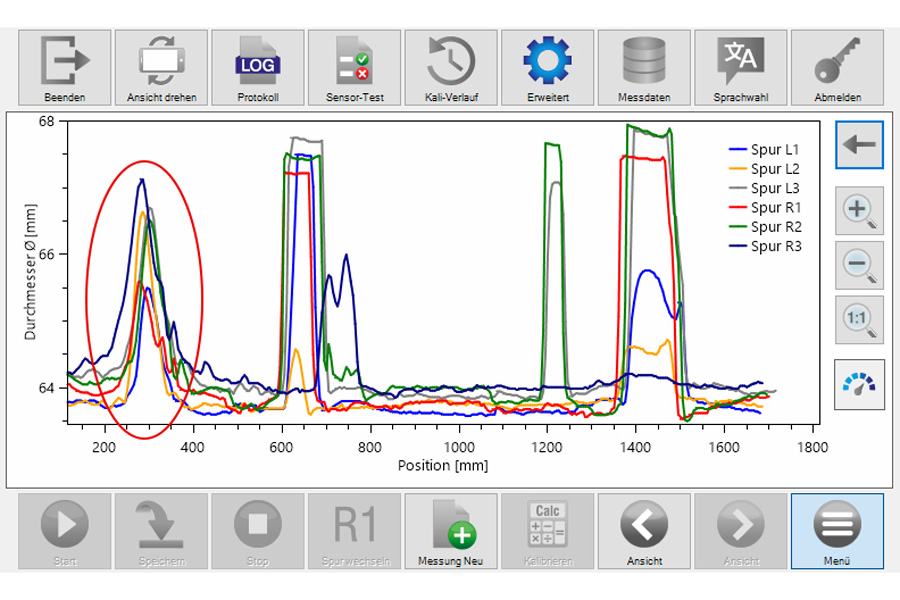

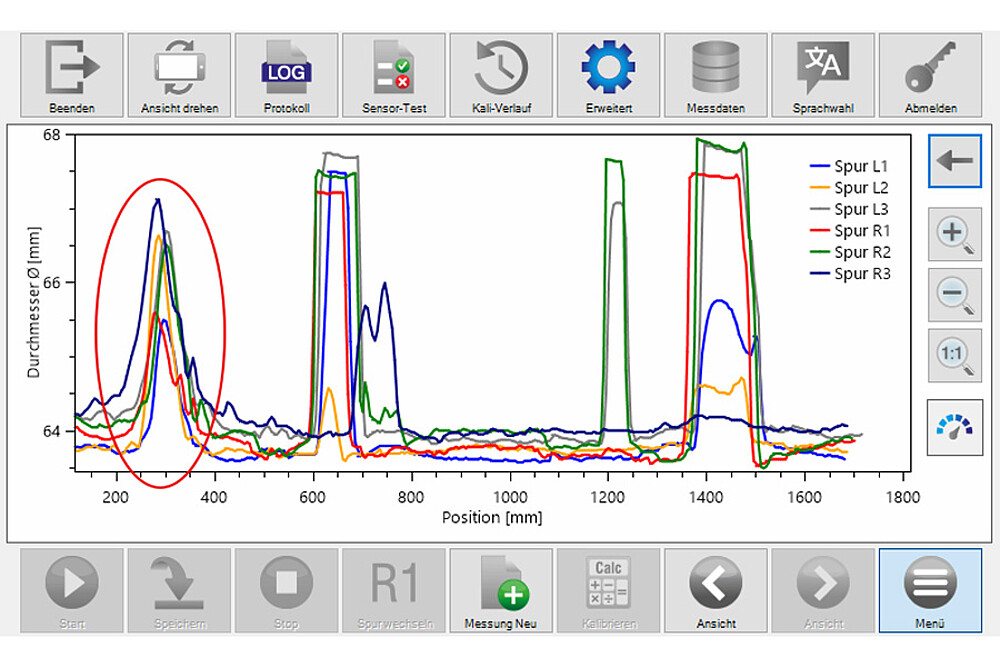

  5. Automatic evaluation function via tolerance specifications
  6. USB interface for data output and logging
  7. Integrated function test for inspecting the condition of the measuring system
[]
Contact
Micro-Epsilon Messtechnik
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
captcha
* Mandatory fields
Click here to read our data privacy statement.

Operating principle

The idiamCONTROL works with integrated capacitive displacement sensors. These measure the actual bore diameter over the whole length of the process part. As the axial sensor position is detected as well using a cable-length measuring system, deviations in diameter can be found quickly and reliably. In doing so, each sensor position is related to a diameter in the longitudinal axis of the bore hole. As a result, the diameter length profiles are provided in six tracks and with a spatial resolution of 1 mm. The wear is calculated from the respective diameter values using the evaluation software.
