optoNCDT ILR1171

Powerful laser distance sensor for fast measurements

Fast laser distance sensor for outdoor applications

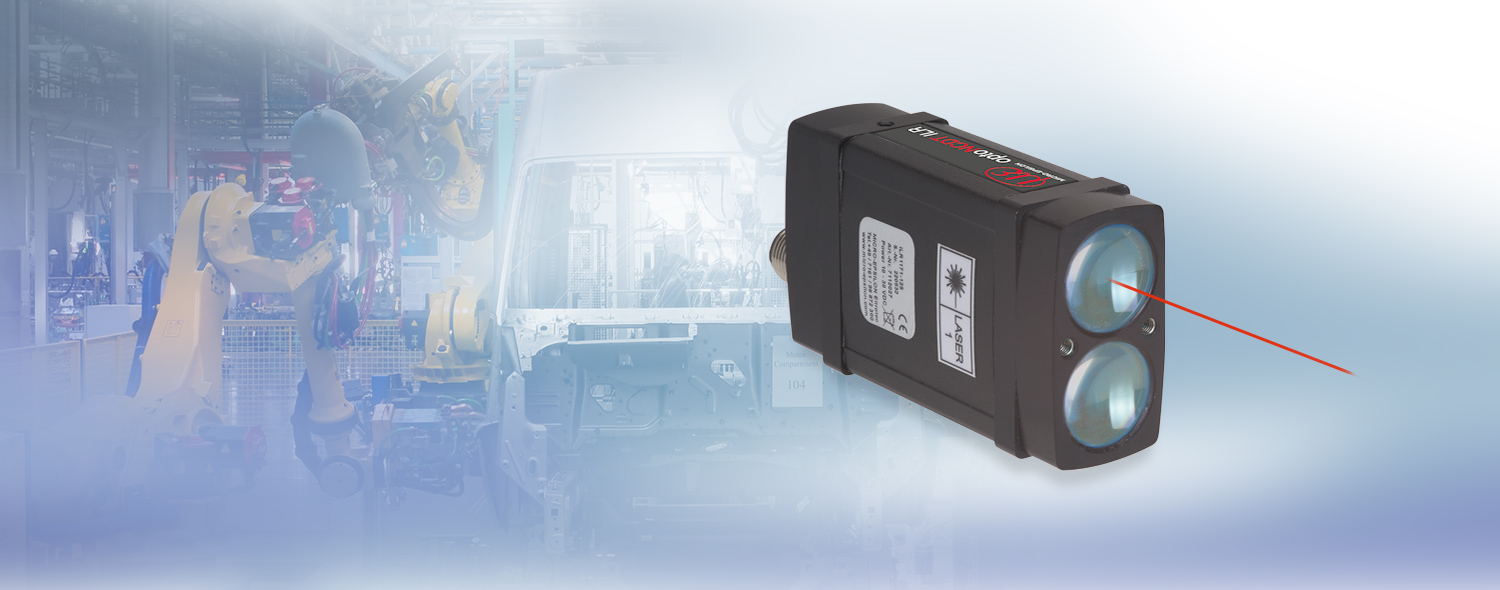

The new optoNCDT ILR1171-125 laser distance sensor is used for distance measurements up to 270 m and particularly impresses in outdoor measurements. Due to the laser time-of-flight principle with infrared light and a measuring rate of up to 40 kHz, high energy pulses are achieved, allowing stable measurements with very good signal quality. In addition, this better compensates for interfering influences such as fog or rain. The high temperature stability allows applications at temperatures from -40 °C to +60 °C. Thanks to its compact dimensions, the sensor can also be integrated into the smallest installation spaces.

logo

Characteristics

  1. Measuring range without reflector (m) 125
  2. Measuring range with reflector (m) 270
  3. Linearity ±60 mm
  4. Resolution 1 mm
  5. High measuring rate of 40 kHz
  6. Robust industrial design with protection class IP67
  7. Infrared laser class 1
  8. Easy integration into existing systems
  9. Measurement onto static and dynamic targets
[]
