Measuring system for precise 3D geometry inspection of profiles and semi-finished products

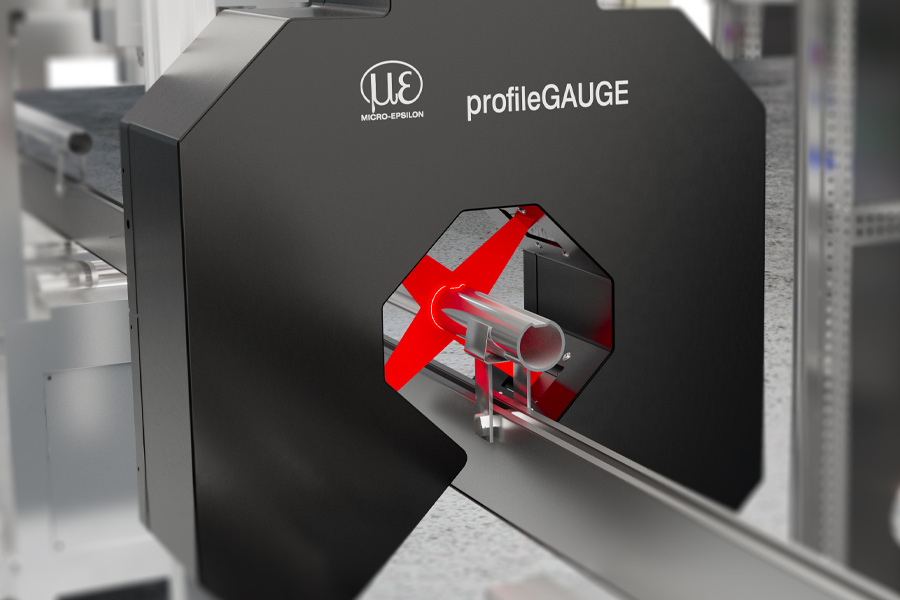

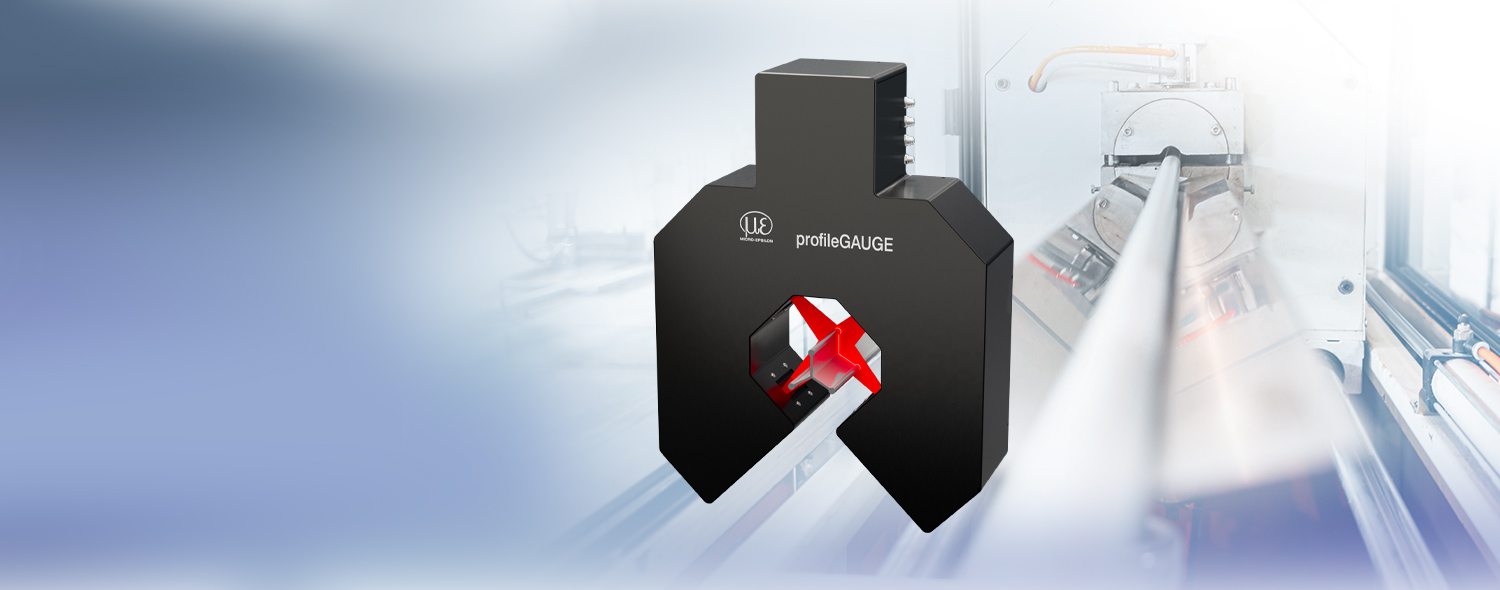

The profileGAUGE X.LP-3D is an inline measuring system for 360° inspection of profiles and semi-finished products. Four scanCONTROL laser scanners detect the measuring object simultaneously from several viewing directions, enabling reliable geometric evaluation directly in the production process.
The 3DInspect and profileGAUGE software is used to create application-specific measurement programs and automatically evaluate inspection characteristics such as width, thickness, angles, radii, depths, gap dimensions, diameters or nominal/actual deviations.
The results can be passed on to higher-level systems for quality assurance and process monitoring.
Characteristics
- Complete solution with measuring bracket, laser scanners, control cabinet and panel IPC
- Measuring range: up to 120 mm
- Accuracy: ±5 µm
- Fully automatic calibration in < 2 seconds
- Suitable for round, square, flat, free-form and hexagonal materials
- Ideal for automatic production monitoring in extrusion lines and the manufacture of semi-finished products
[{"activity":"US_ME_R0-NCSC","address":"8120 Brownleigh Dr.\r\nRaleigh, NC 27617","central":false,"comment":"CT, DC, DE, MA, MD, ME,\r\nNH, NJ, NY, PA, RI, VT","companyName":"Micro-Epsilon America | East Regional Office","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1811},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1653},"mobile":"919 400 3845","name":"Efrain Arredondo","phone1":"919 787 9707","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11343,"type":null,"uid":116,"usStates":"14,15,32,31,29,40,41,43,51,53,59,16","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R2-Mid-West","address":"1246 Woburn Dr\r\nLemont, IL 60439","central":false,"comment":"IL: 600-619,\r\nIN, KY, MI, OH,\r\nPA: 150-167,\r\nWI: 530-539, 541-545, 549, \r\nWV","companyName":"Micro-Epsilon America | Mid West Regional Office","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"630 243-0997","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1812},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1663},"mobile":"847 420 4781","name":"Steve Sochowski","phone1":"630 243-0980","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":11344,"type":null,"uid":117,"usStates":"23,24,27,33,47,51,64,63","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R3-West","address":"San Clemente, CA 92673","central":false,"comment":"AK, CA, HI, NV, OR, WA","companyName":"Micro-Epsilon America | Western Regional Office","countries":"220","deZip":"","email":"jerry.carayanis@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1813},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1654},"mobile":"","name":"Jerry Carayanis","phone1":"310 729 0954","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":11345,"type":null,"uid":118,"usStates":"2,12,21,39,49,62","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R4-South","address":"Denver, CO 80227","central":false,"comment":"AZ, CO, IA, ID,\r\nIL: 620-629, \r\nKS, LA, MN, MO, MT, ND, NE, NM, OK, SD, TX, UT,\r\nWI: 540, 546-548, \r\nWY","companyName":"Micro-Epsilon America | Central Regional Office","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1814},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1655},"mobile":"919 412 3620","name":"Friedrich \u0022Fritz\u0022 Gebessler","phone1":"","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":11347,"type":null,"uid":119,"usStates":"4,13,25,22,23,26,28,34,36,37,45,38,42,48,55,57,58,64,65","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R5-Southeast","address":"8120 Brownleigh Dr.\r\nRaleigh NC 27617","central":false,"comment":"AL, AR, FL, GA, MS, NC, \r\nSC, TN, VA","companyName":"Micro-Epsilon America | South East Regional Office","countries":"220","deZip":"","email":"tim.prentice@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1815},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1656},"mobile":"","name":"Tim Prentice","phone1":"919 649 9805","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":11348,"type":null,"uid":120,"usStates":"1,5,18,19,35,44,54,56,61","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R6-Northern","address":"4749 Bennett Drive, Suite J\r\nLivermore, CA 94551","central":false,"comment":"CA: 932, 934, 936 - 961 (Northern Cal)","companyName":"Micro-Epsilon America | Northern California Direct Office","countries":"220","deZip":"","email":"holger.kopp@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"925 371 5673","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":61872},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":61871},"mobile":"","name":"Holger Kopp","phone1":"984 888 6555","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":11349,"type":null,"uid":305,"usStates":"12","website":"www.micro-epsilon.com","worldwide":true},{"activity":"USREP_IRI","address":"9415 West Forest Home ave\r\nSuite 101\r\nWI 53130","central":false,"comment":"IL","companyName":"Instrumentation Resources","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"815 520-0344","name":"Tim Fauser","phone1":"952-797-0220","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11293,"type":null,"uid":162,"usStates":"23","website":"www.irisensors.com","worldwide":true},{"activity":"USREP_TandM-Instruments","address":"15902 Soleil Ct\r\nAustin, TX 78734","central":false,"comment":"LA, OK, TX","companyName":"T\u0026M Instruments","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"512-532-6130","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"T\u0026M Instruments","phone1":"512-772-1553","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11294,"type":null,"uid":171,"usStates":"28,48,57","website":"www.tandm.net","worldwide":true},{"activity":"USREP_Process-Technology_NM","address":"3301 Wellington Place\r\nFarmington, NM 87402","central":false,"comment":"NM","companyName":"Process Technology, Inc.","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"505 948 3302","name":"Josh Gordon","phone1":"","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11295,"type":null,"uid":169,"usStates":"42","website":"www.process-tech.com","worldwide":true},{"activity":"USREP_Process-Technology","address":"4084 South 300 West\r\nSalt Lake City, UT 84107","central":false,"comment":"ID, MT, UT, WY","companyName":"Process Technology, Inc.","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"385 322 3053","name":"Mike Hallenbeck","phone1":"801 264 1114","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11296,"type":null,"uid":168,"usStates":"22,37,58,65","website":"www.process-tech.com","worldwide":true},{"activity":"USREP_Analectro","address":"3219 Route 38, Suite 2\r\nMt. Laurel, NJ 08054","central":false,"comment":"DC, DE, MD, NJ\r\nPA: 168 - 196","companyName":"Analectro","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"856 795 4597","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Al Reithmeier, Kevin Corcoran","phone1":"856 795 6676","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11297,"type":null,"uid":154,"usStates":"16,15,31,41,51","website":"www.analectro.com","worldwide":true},{"activity":"USREP_Dempsco","address":"7015 Corporate Way\r\nDayton, OH 45459","central":false,"comment":"KY, IN, WV, \r\nOH: 430-433, 437-459\r\nPA: 150-167","companyName":"Dempsco","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"937 434 8860","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Kurt Jacoby, Chris Jacoby","phone1":"937 436 1000","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11298,"type":null,"uid":160,"usStates":"27,24,63,47,51","website":"www.dempsco.com","worldwide":true},{"activity":"USREP_Preferred_Technical_Resources","address":"28525 Beck Road, Suite 109\r\nWixom, MI 48393","central":false,"comment":"MI, OH: 434 - 436","companyName":"Preferred Technical Resources","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"248 668 9059","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Philip Theaker, John Callaghan","phone1":"248 668 9051","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11299,"type":null,"uid":167,"usStates":"33,47","website":"www.ptrsales.com","worldwide":true},{"activity":"USREP_MCT_RAM","address":"2 W Main St, Suite 300\r\nVictor, NY 14564","central":false,"comment":"NY 120 - 123, 128 - 149","companyName":"MCT\/RAM - Corporate Office","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"585 461 2114","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"John Saporito","phone1":"585 461 2110","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11300,"type":null,"uid":165,"usStates":"43","website":"www.mctram.com","worldwide":true},{"activity":"USREP_MCT_RAM1","address":"4 Marina Lane\r\nE. Patchogue, NY 11772","central":false,"comment":"NY 100 - 119, 124 - 127","companyName":"MCT\/RAM - Lower New York and New York City","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"585-461-2114","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"John Gustafson","phone1":"631-286-7374","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11301,"type":null,"uid":166,"usStates":"43","website":"www.mctram.com","worldwide":true},{"activity":"USREP_IRI","address":"9415 West Forest Home ave\r\nSuite 101\r\nWI 53130","central":false,"comment":"WI: 530 - 539, 541 - 545, 549","companyName":"Instrumentation Resources","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"414- 458-9325","name":"Jon Korus","phone1":"952-797-0220","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11302,"type":null,"uid":163,"usStates":"64","website":"www.irisensors.com","worldwide":true},{"activity":"USREP_IRI","address":"13774 Reimer Drive North \r\nMaple Grove, MN 55311","central":false,"comment":"IA, KS, MN, MO, ND, NE, SD,\r\nWI: 540, 546 - 548","companyName":"Instrumentation Resources","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"952 797 0223","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Tony Marquette","phone1":"952 797 0220","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11303,"type":null,"uid":164,"usStates":"25,26,34,36,45,38,55,64","website":"www.irisensors.com","worldwide":true},{"activity":"USREP_Equipoise","address":"4059 N Haight Ave\r\nPortland, OR 97227-1332","central":false,"comment":"OR, WA","companyName":"Equipoise Technologies, LLC","countries":"220","deZip":"","email":"jerry.carayanis@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Ed Querfeld","phone1":"503 708 9969","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11304,"type":null,"uid":161,"usStates":"49,62","website":"www.equipoisetech.com","worldwide":true},{"activity":"USREP_CASECO","address":"508 Queens Court\r\nFranklin, TN 37064","central":false,"comment":"AL, AR, MS, TN\r\nFL: 324 - 325","companyName":"CASECO","countries":"220","deZip":"","email":"tim.prentice@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"615 591-7399","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"615 210-7311","name":"Tim DiPeri","phone1":"615 591-7399","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11305,"type":null,"uid":159,"usStates":"1,5,35,56,18","website":"www.caseco-inc.com","worldwide":true},{"activity":"USREP_CAL_Industrial_Sales_Co","address":"4749 Bennett Drive, Suite J\r\nLivermore, CA 94551","central":false,"comment":"CA: 932, 934, 936 - 961 (Northern Cal)\r\nNV: 892 - 898","companyName":"CAL Industrial Sales Co.","countries":"220","deZip":"","email":"jerry.carayanis@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"925 371 5673","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Dave Richardson, Bob McCartney","phone1":"925 371 8125","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":11306,"type":null,"uid":158,"usStates":"39,12","website":"www.calindustrial.com","worldwide":true}]
Contact
Micro-Epsilon USA Headquarters
Efrain Arredondo
Micro-Epsilon America | East Regional Office
CT, DC, DE, MA, MD, ME, NH, NJ, NY, PA, RI, VT
Steve Sochowski
Micro-Epsilon America | Mid West Regional Office
IL: 600-619, IN, KY, MI, OH, PA: 150-167, WI: 530-539, 541-545, 549, WV
Jerry Carayanis
Micro-Epsilon America | Western Regional Office
AK, CA, HI, NV, OR, WA
Friedrich "Fritz" Gebessler
Micro-Epsilon America | Central Regional Office
AZ, CO, IA, ID, IL: 620-629, KS, LA, MN, MO, MT, ND, NE, NM, OK, SD, TX, UT, WI: 540, 546-548, WY
Tim Prentice
Micro-Epsilon America | South East Regional Office
AL, AR, FL, GA, MS, NC, SC, TN, VA
Holger Kopp
Micro-Epsilon America | Northern California Direct Office
CA: 932, 934, 936 - 961 (Northern Cal)
Tim Fauser
Instrumentation Resources
IL
T&M Instruments
T&M Instruments
LA, OK, TX
Josh Gordon
Process Technology, Inc.
NM
Mike Hallenbeck
Process Technology, Inc.
ID, MT, UT, WY
Al Reithmeier, Kevin Corcoran
Analectro
DC, DE, MD, NJ PA: 168 - 196
Kurt Jacoby, Chris Jacoby
Dempsco
KY, IN, WV, OH: 430-433, 437-459 PA: 150-167
Philip Theaker, John Callaghan
Preferred Technical Resources
MI, OH: 434 - 436
John Saporito
MCT/RAM - Corporate Office
NY 120 - 123, 128 - 149
John Gustafson
MCT/RAM - Lower New York and New York City
NY 100 - 119, 124 - 127
Jon Korus
Instrumentation Resources
WI: 530 - 539, 541 - 545, 549
Tony Marquette
Instrumentation Resources
IA, KS, MN, MO, ND, NE, SD, WI: 540, 546 - 548
Ed Querfeld
Equipoise Technologies, LLC
OR, WA
Tim DiPeri
CASECO
AL, AR, MS, TN FL: 324 - 325
Dave Richardson, Bob McCartney
CAL Industrial Sales Co.
CA: 932, 934, 936 - 961 (Northern Cal) NV: 892 - 898
Reliable inspection of geometric features
The profileGAUGE X.LP-3D is ideal for the geometry inspection of various profiles and semi-finished products. Typical measured quantities include:
- Width, height and thickness
- Angles and radii
- Depths and gap dimensions
- Diameters
- Form, position and nominal/actual deviations
The system thus supports continuous quality control in the production of round, square, flat, free-form and hexagonal materials.
Tailored to your profile geometry
The profileGAUGE X.LP-3D is designed specifically for the respective object to be measured. The standard version X.LP-3D-50 offers a measuring range of 40 mm. An extended measuring range of up to 120 mm is possible depending on the object to be measured.
The final design depends on the profile size, geometry and the relevant features to be inspected. This ensures that the contour areas to be evaluated are within the measurable range.
Easy integration into new systems and retrofit applications
The profileGAUGE measuring system consists of a measuring bracket with integrated laser scanners as well as a control cabinet and panel IPC with software. Its compact system architecture facilitates integration into new systems as well as retrofit installation in existing production lines. Standard industrial interfaces are available for integration into automated processes. This means that measurement results can be transferred directly to the machine control system and used for further process monitoring.
