Protective housings for scanCONTROL sensors
For use under harsh conditions and high temperatures, special protective and cooling housings are available for the scanCONTROL sensors.

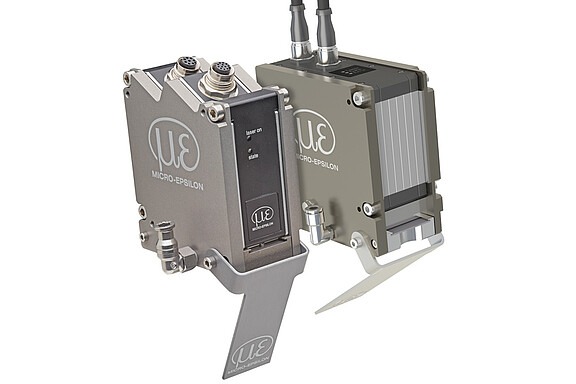

Protective housing with blow-out system
The protective housing with blow-out system is suitable for all scanCONTROL 25x0/29x0 sensors with measuring ranges of 25, 50 and 100 mm, as well as for all scanCONTROL 30x0 and 30x2 scanners with measuring ranges from to 25 mm to 200 mm. It protects the sensor from mechanical damage and is used when the scanner is applied under extremely harsh conditions. If the integrated blow-out system is fed with compressed air, dirt such as dust or chipping are removed and cleaning intervals are extended. The protective window can be easily replaced at low cost.

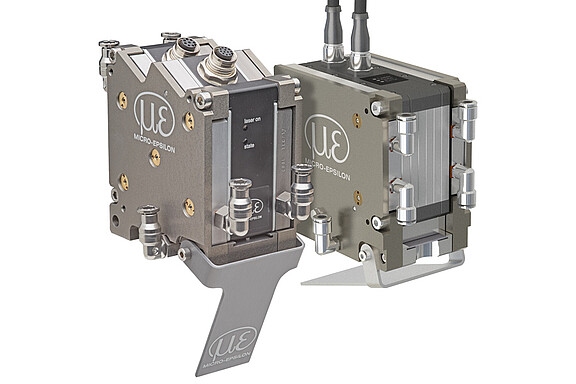

Protective housing with blow-out system and water cooling
The protective housing with blow-out system and water cooling is suitable for all scanCONTROL 25x0/29x0 sensors with measuring ranges of 25, 50 and 100 mm, as well as for all scanCONTROL 30x0 and 30x2 scanners with measuring ranges from 25 to 200 mm. It protects the sensor from mechanical damages but also from high ambient temperatures due to cooling liquid in the cooling loops which are integrated in the housing side parts. On the other hand, the sensor can be heated using a warm medium in case of low outdoor temperatures. The blow-out system removes foreign bodies from the scanner with compressed air. If necessary, the protective window can be easily replaced with little effort.
