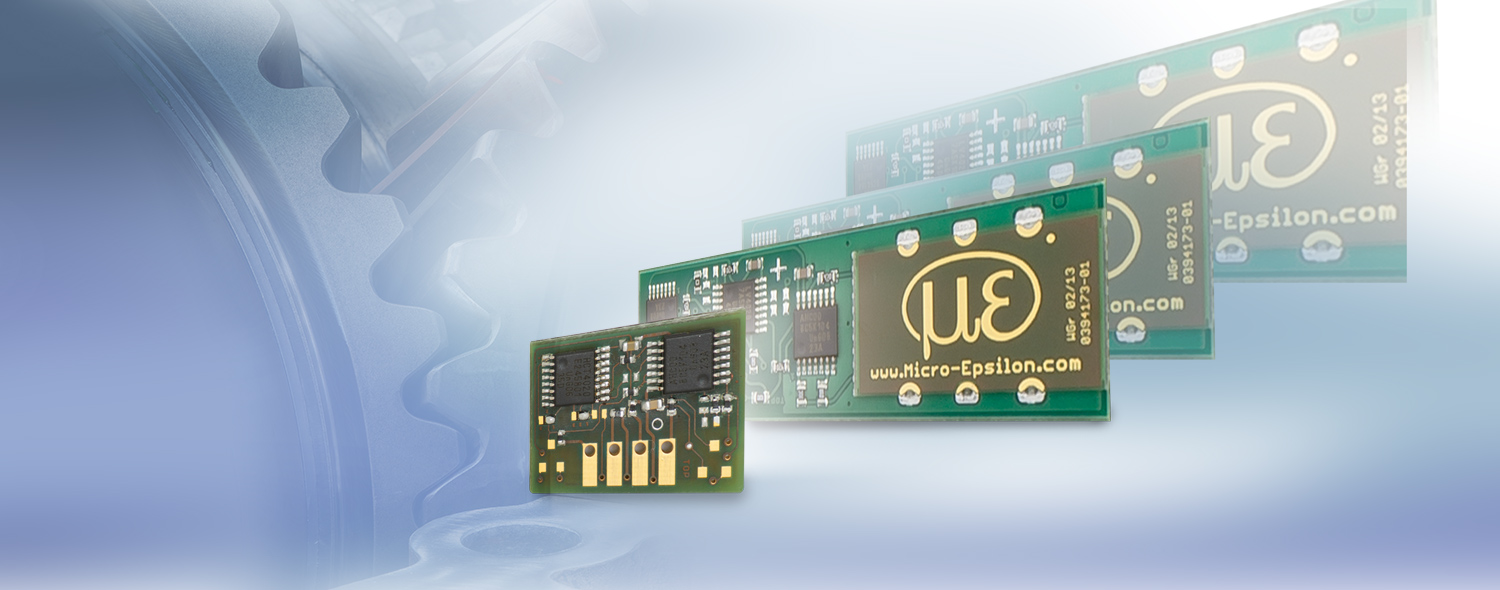

mainSENSOR MDS-40-LP

PCB sensors for large-scale series

Magneto-inductive displacement sensors in circuit-board version

The MDS-40-LP sensors are specially designed for large volume production from 2,000 pieces or more. As these sensors are reduced to pure measurement technology, the creation of cost-effective PCB sensors was possible. Their flat design and flexible arrangement of the magnets allows easy integration in restricted spaces. Measured values are output via a rectangular signal, which is easily evaluated via, for example, digital inputs from micro-controllers.

logo

Characteristics

  1. Measuring range approx. 40mm
  2. Rectangular signal as signal output
  3. Available from 2,000 pc.
[]
