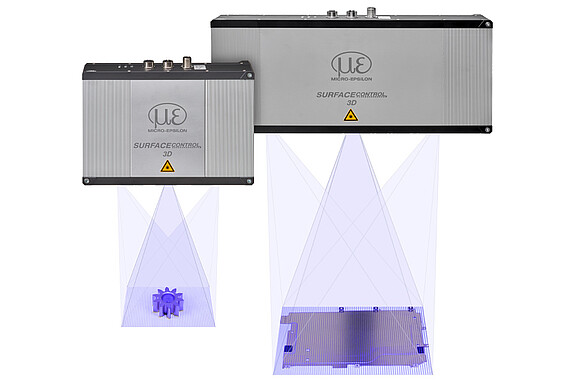

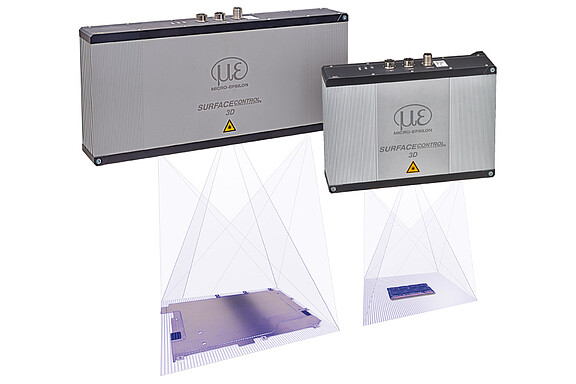

3D snapshot sensors with an excellent price-performance ratio for integrators
The surfaceCONTROL 3D 3200/3500 sensors are particularly suitable for integrators, machine builders and OEM users who want to incorporate high-precision 3D measurement data into their own inspection, image processing or automation solutions. Non-contact 3D snapshot acquisition provides calibrated 3D point clouds for individual further processing. The sensors offer a particularly efficient solution for users who operate their own software or evaluation environments.

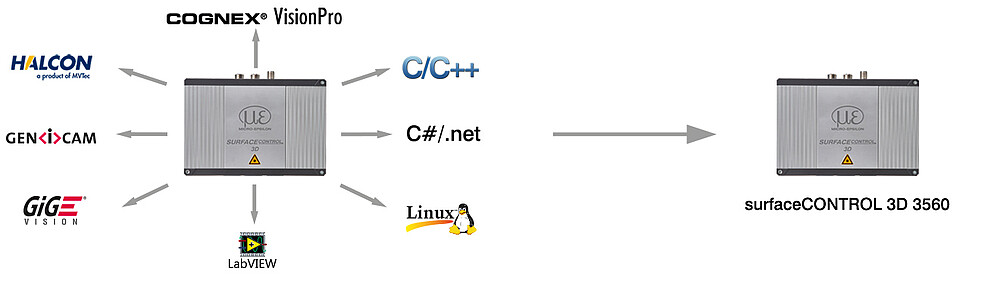

Independent integration with unlimited possibilities: The 3D sensors are flexibly integrated into existing automation and image processing environments via GigE Vision/GenICam and the Micro-Epsilon 3D SDK.
Characteristics
- Calibrated 3D data for precise measurement and inspection tasks
- Non-contact 3D snapshot measurement of matte and diffusely reflecting surfaces
- High Z-axis precision down to 0.25 µm for detecting the smallest height differences
- High lateral resolution of 8 µm for fine structures and details
- Fast acquisition times from 0.2 s for inline, at-line and robot applications
- Flexible integration via GigE Vision, GenICam and Micro-Epsilon 3D SDK
- Digital inputs and outputs for easy connection to automation environments
No in-house software solution? Use our SMART sensor surfaceCONTROL 3560

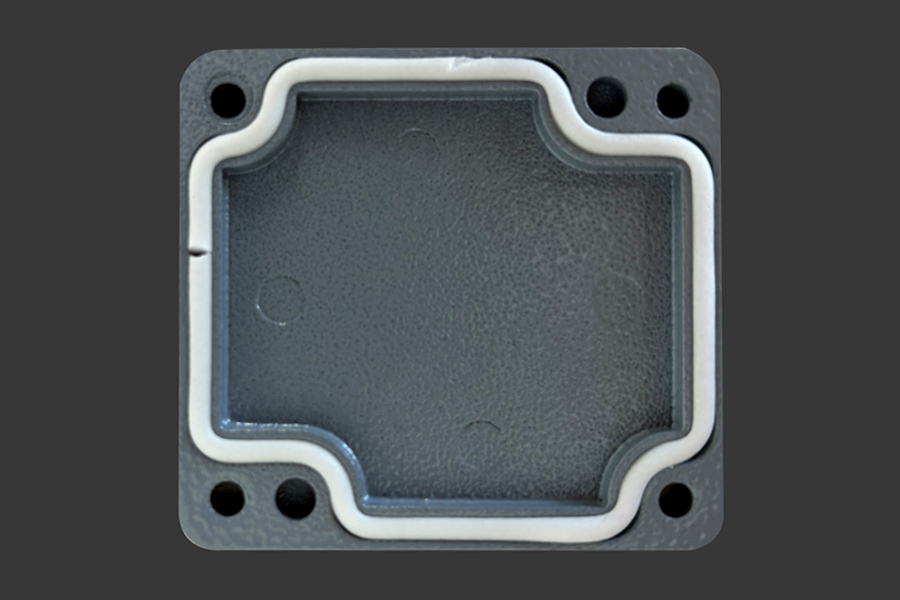

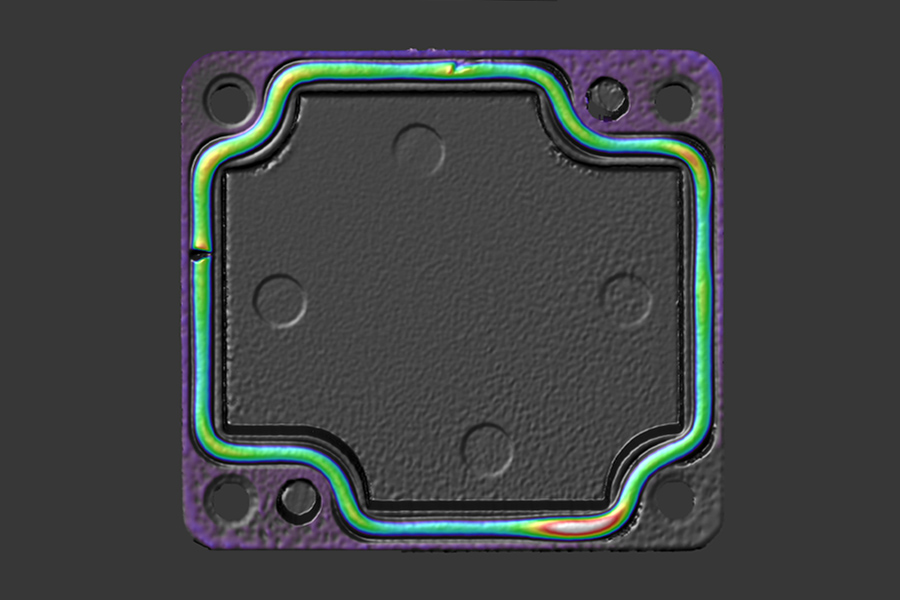

Full-field 3D inspection of sealing contour and housing geometry
Using a housing cover with sealing contour as an example, surfaceCONTROL demonstrates how the entire surface can be captured and inspected in three dimensions with a single snapshot. Deviations in seal height, path and position as well as defects are detected at an early stage, reducing scrap and ensuring consistently high product quality.
