scanCONTROL 25x0

For measurement tasks with large quantities

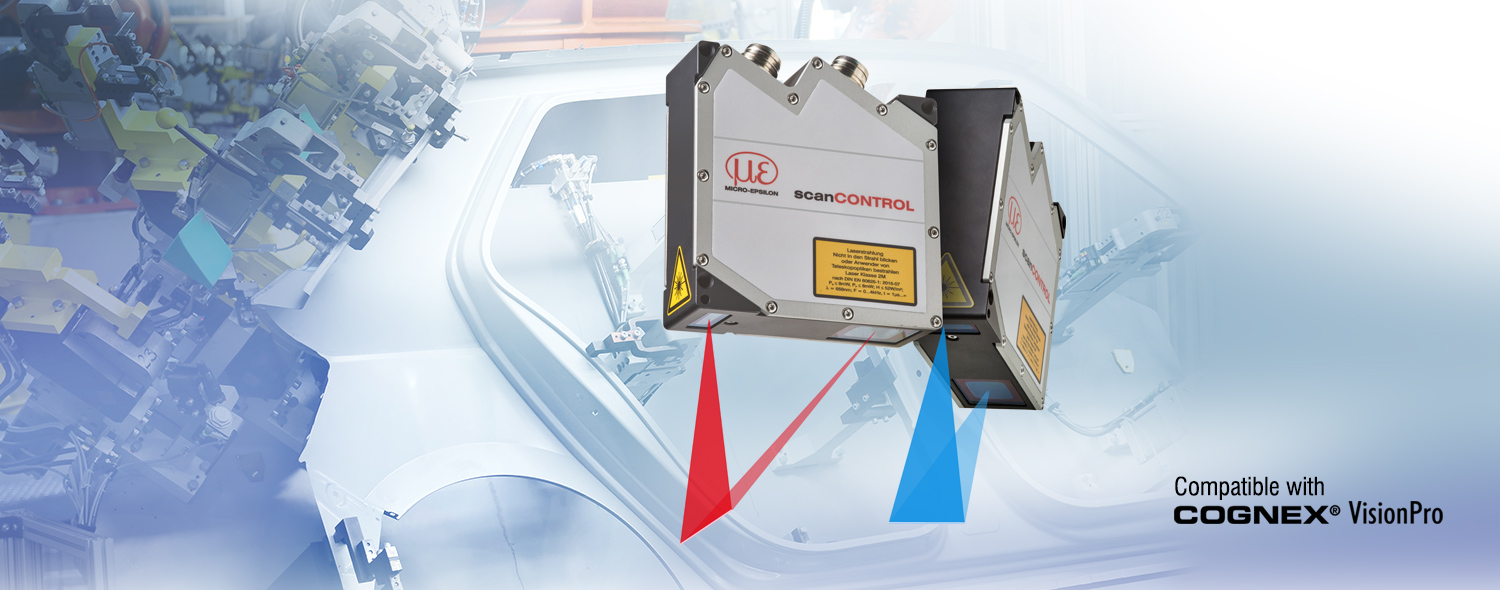

Laser scanner for industrial series applications

scanCONTROL 25x0 laser scanners are designed for industrial measurement tasks. The combination of compact design, versatility and signal stability creates an excellent price/performance ratio, especially for measurement tasks involving large quantities. The scanCONTROL 25x0 laser scanners are available with three measuring ranges with either red or blue laser. Optional accessories, different cable types and interface modules enable a wide range of applications in the production line and in machine building.



  1. Measuring ranges z-axis up to 265 mm
  2. Measuring ranges x-axis up to 143.5 mm
  3. Measurement speed 2000 Hz
  4. Measuring rate 1,280,000 points/sec
  5. Line linearity z-axis from 2 μm
  6. Resolution x-axis up to 640 points
  7. High signal stability
  8. Excellent price/performance ratio
  9. Ideal for series applications
  10. Available also with blue laser
  11. Compatible with Cognex VisionPro
Micro-Epsilon Messtechnik
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
* Mandatory fields
Click here to read our data privacy statement.

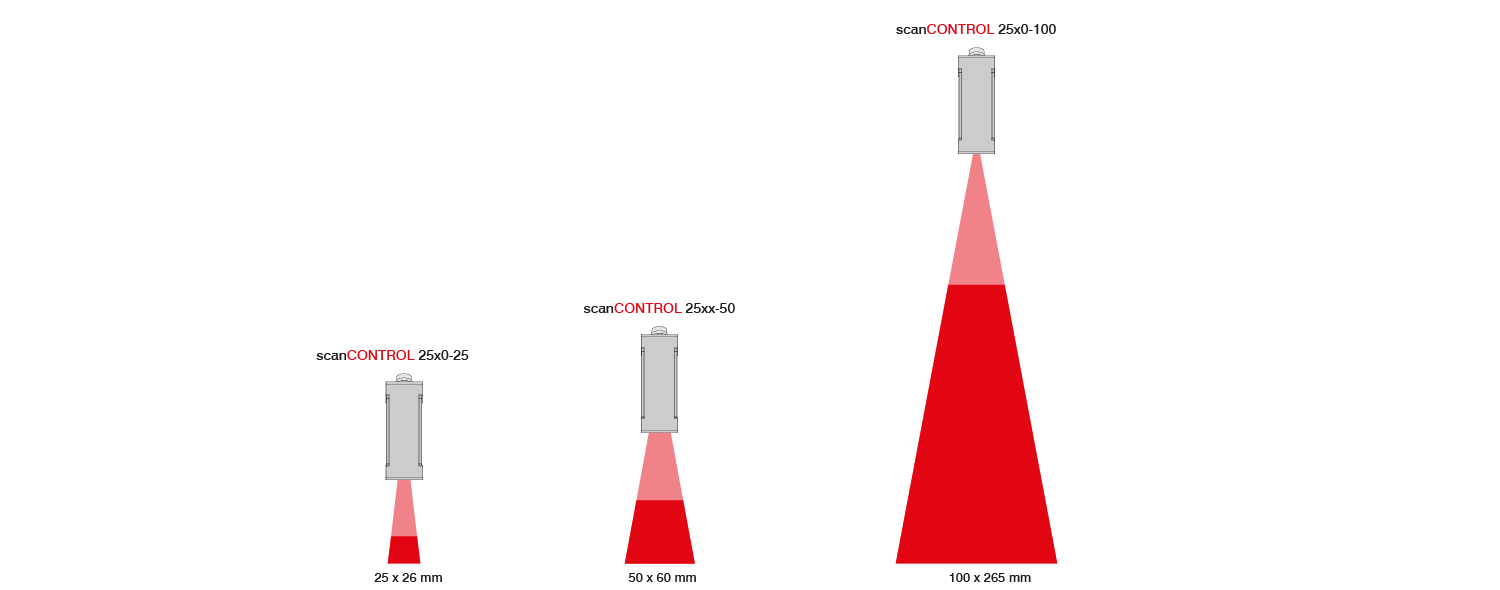

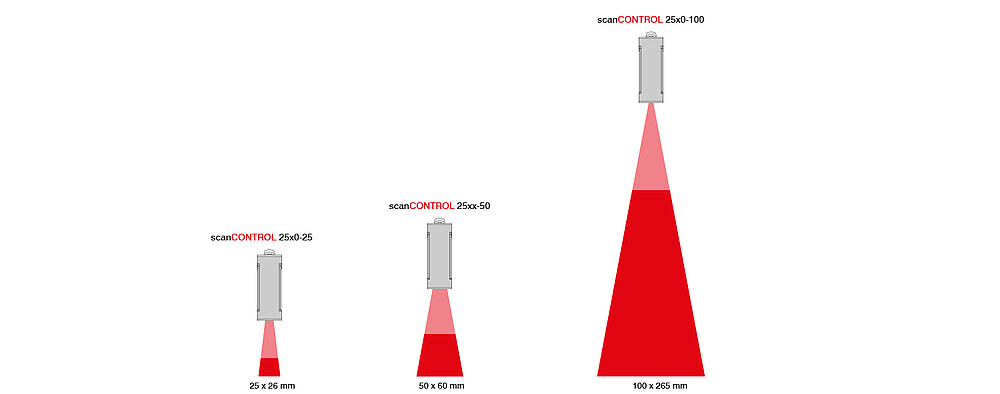

Available measuring ranges
