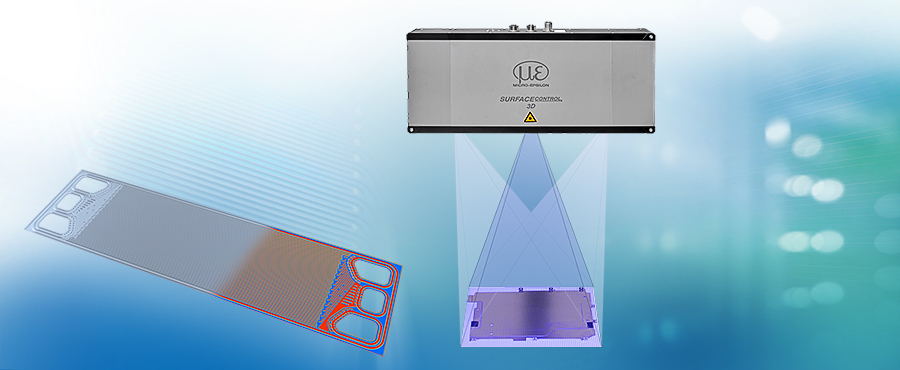

High-performance 3D snapshot sensor for large measuring ranges


The surfaceCONTROL 3xx0-240 with its large measuring range and outstanding 3D data quality captures structures and details of larger targets with highest precision. The sensor offers a high z-axis resolution of up to 4 µm, excellent z-axis repeatability of < 1.4 µm and a large measuring range. This enables maximum precision in numerous applications such as the testing of bipolar plates. The most important applications include flatness and coplanarity measurement as well as defect detection.

Advantages at a glance

  • Real inline 3D measurement of measuring objects up to 245 x 180 mm
  • Outstanding 3D data quality
  • Versatile and particularly easy integration, commissioning and parameterization
  • Fast data output via Gigabit Ethernet and an additional digital I/O interface
  • Powerful 3DInspect software for precise 3D measurement and surface inspection
  • GigE Vision compatibility for easy integration with every common third-party 3D imaging software
  • Comprehensive evaluation software and SDK for customer software integration
