wireSENSOR MT

Worldwide smallest string-potentiometer sensor

String-potentiometer sensors for high speed measurements

Miniature MP and MT string-pot sensors are designed for measurement tasks with fast wire movements. Their robust aluminum housing makes the sensors suitable for industrial applications. The MP and MT string-potentiometer sensors are equipped with a potentiometer.

Contact

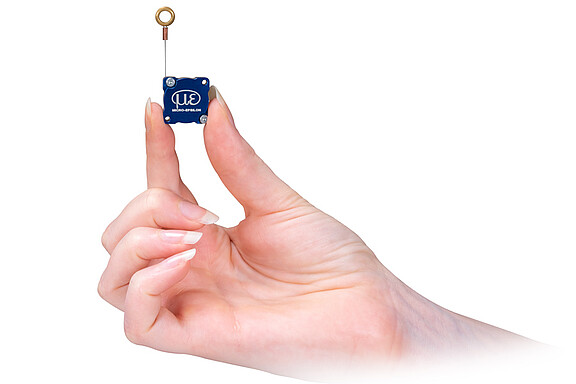

Miniature draw-wire sensors - wireSENSOR MT

Miniature MT string-potentiometer sensors are the smallest string-pot sensors worldwide. They are designed specifically for test applications where high wire accelerations occur such as crash tests. Their miniature design enables installation into very small spaces. Through-bores in the housing support easy, fast mounting.

Characteristics

  1. Measuring ranges (mm): 40 | 80 | 130

  2. Linearity ±0.4% FSO

  3. Output: potentiometer

  4. Easy and flexible mounting

  5. For fast accelerations up to 60 g

  6. Worldwide smallest design

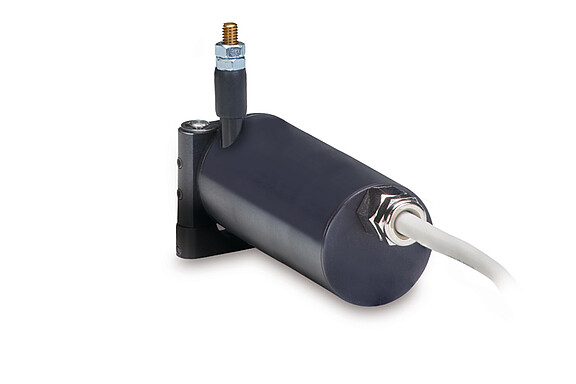

Miniature draw-wire sensors - wireSENSOR MPM

MPM string-potentiometer sensors combine miniaturized components and high-resolution precision hybrid potentiometers. They are preferably used in applications characterized by fast movements, short distances and confined spaces.

Characteristics

  1. Measuring ranges (mm): 50 | 150 | 250

  2. Linearity ± 0.2 % FSO

  3. Output: potentiometer

  4. Miniature string-pot sensor

  5. Flexible mounting

  6. For fast movements up to 100 g

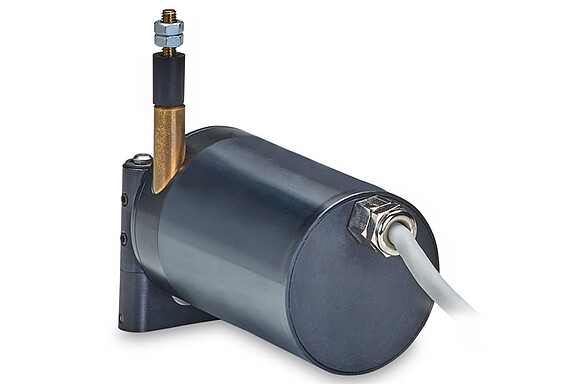

Miniature draw-wire sensors - wireSENSOR MP / MPW

The MP/MPW string-potentiometer sensors are designed both for industrial use as well as for mobile applications. These string-potentiometer displacement sensors are the preferred choice where mid-size displacements must be measured under limited space conditions. The MPW series (waterproof) is particularly suitable for applications in harsh ambient conditions.

Characteristics

  1. Measuring ranges (mm): 100 | 300 | 500 | 1,000

  2. Linearity ± 0.1 % FSO

  3. Output: potentiometer

  4. Miniature design

  5. MPW = waterproof version

  6. For extremely harsh environments

  7. Medium measuring ranges

Interface and signal processing units

IF1032/ETH
