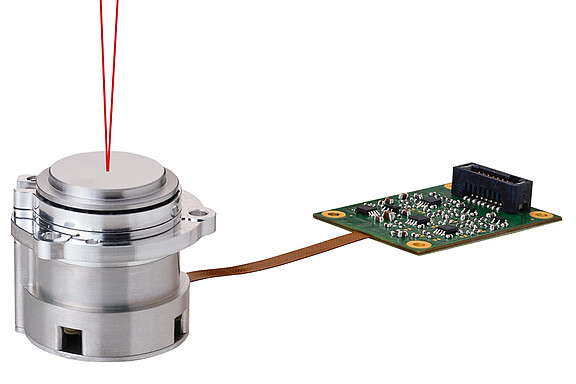

Fast Steering Mirror for secure data communication

Mirror tilting systems from Micro-Epsilon are used in image stabilizers, cameras and electro-optical systems for drones. Our fast mirror tilting systems offer maximum precision and reliability in various applications. They direct laser beams onto the transmitter or receiver at high speed with extremely high angular accuracy and ensure a high level of security in laser-based communication.

Technical data

  • Mirror: max 20 mm
  • Diameter: max 34 mm
  • Measuring range: ±1.5°
  • Resolution: 0.7 µrad rms
  • Bandwidth: 1.5 kHz

Other fields of application

  • Helicopters
  • Aircraft
  • Target acquisition systems
  • Digital periscopes
  • Beam stabilizers
