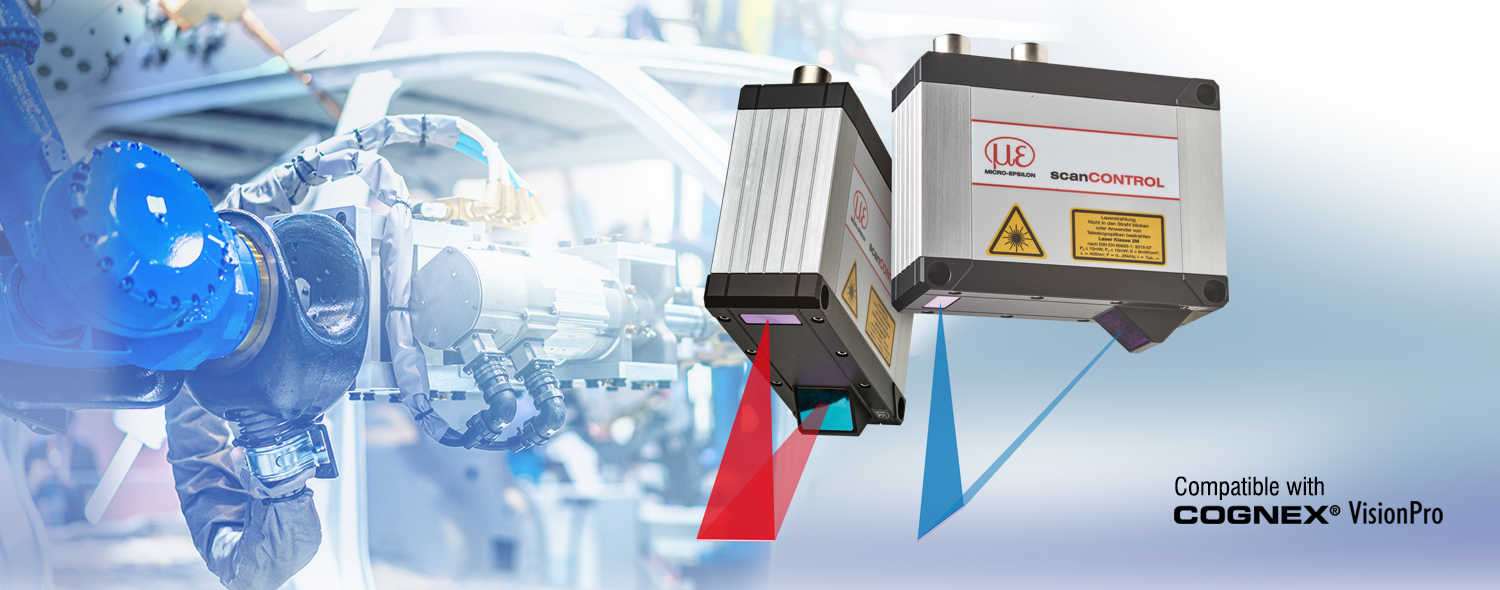

scanCONTROL 30x0

Fast high-precision 2D/3D profile measurements

High-performance laser scanner

scanCONTROL 30x0 laser scanners are among the highest performing profile sensors in terms of their size, accuracy and measuring rate. They provide calibrated 2D profile data with up to approx. 10 million points per second. Their profile frequency of max. 10 kHz enables precise profile measurements in dynamic processes. The high-resolution sensor matrix offers a resolution of 2,048 points with an ultimate point distance of just 12 µm. This is how even the finest of details can be detected reliably.

logo

Characteristics

  1. Measuring range z-axis up to 600 mm
  2. Measuring range x-axis up to 380 mm
  3. Measurement speed up to 10 kHz
  4. Measuring rate up to approx. 10,000,000 points/sec
  5. Line linearity z-axis from 1.5 μm
  6. Resolution x-axis up to 2,048 points
  7. Selectable operating modes
  8. Also available with blue laser
  9. Compatible with Cognex VisionPro
  10. Fastest SMART evaluation directly in the sensor: up to 10 kHz
  11. Optimal connection to PLC due to UDP bundling without data loss
  12. Certified according to UL 61010-1
[{"activity":"US_ME_R0-NCSC","address":"8120 Brownleigh Dr.\r\nRaleigh, NC 27617","central":false,"comment":"CT, DC, DE, MA, MD, ME,\r\nNH, NJ, NY, PA, RI, VT","companyName":"Micro-Epsilon America | East Regional Office","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1811},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1653},"mobile":"919 400 3845","name":"Efrain Arredondo","phone1":"919 787 9707","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9295,"type":null,"uid":116,"usStates":"14,15,32,31,29,40,41,43,51,53,59,16","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R2-Mid-West","address":"1246 Woburn Dr\r\nLemont, IL 60439","central":false,"comment":"IL: 600-619,\r\nIN, KY, MI, OH,\r\nPA: 150-167,\r\nWI: 530-539, 541-545, 549, \r\nWV","companyName":"Micro-Epsilon America | Mid West Regional Office","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"630 243-0997","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1812},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1663},"mobile":"847 420 4781","name":"Steve Sochowski","phone1":"630 243-0980","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":9296,"type":null,"uid":117,"usStates":"23,24,27,33,47,51,64,63","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R3-West","address":"San Clemente, CA 92673","central":false,"comment":"AK, CA, HI, NV, OR, WA","companyName":"Micro-Epsilon America | Western Regional Office","countries":"220","deZip":"","email":"jerry.carayanis@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1813},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1654},"mobile":"","name":"Jerry Carayanis","phone1":"310 729 0954","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":9297,"type":null,"uid":118,"usStates":"2,12,21,39,49,62","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R4-South","address":"Denver, CO 80227","central":false,"comment":"AZ, CO, IA, ID,\r\nIL: 620-629, \r\nKS, LA, MN, MO, MT, ND, NE, NM, OK, SD, TX, UT,\r\nWI: 540, 546-548, \r\nWY","companyName":"Micro-Epsilon America | Central Regional Office","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1814},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1655},"mobile":"919 412 3620","name":"Friedrich \u0022Fritz\u0022 Gebessler","phone1":"","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":9299,"type":null,"uid":119,"usStates":"4,13,25,22,23,26,28,34,36,37,45,38,42,48,55,57,58,64,65","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R5-Southeast","address":"8120 Brownleigh Dr.\r\nRaleigh NC 27617","central":false,"comment":"AL, AR, FL, GA, MS, NC, \r\nSC, TN, VA","companyName":"Micro-Epsilon America | South East Regional Office","countries":"220","deZip":"","email":"tim.prentice@micro-epsilon.com","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"919 787 9706","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":1815},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":1656},"mobile":"","name":"Tim Prentice","phone1":"919 649 9805","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":9300,"type":null,"uid":120,"usStates":"1,5,18,19,35,44,54,56,61","website":"www.micro-epsilon.com","worldwide":true},{"activity":"US_ME_R6-Northern","address":"4749 Bennett Drive, Suite J\r\nLivermore, CA 94551","central":false,"comment":"CA: 932, 934, 936 - 961 (Northern Cal)","companyName":"Micro-Epsilon America | Northern California Direct Office","countries":"220","deZip":"","email":"holger.kopp@micro-epsilon.de","emailCc":"","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"925 371 5673","hidePlz":false,"image":{"originalResource":{},"pid":358,"uid":61872},"internalNote":"","lName":"","map":{"originalResource":{},"pid":358,"uid":61871},"mobile":"","name":"Holger Kopp","phone1":"984 888 6555","phone2":"919 787 9707","pid":358,"products":"","regional":false,"showMail":false,"sorting":9301,"type":null,"uid":305,"usStates":"12","website":"www.micro-epsilon.com","worldwide":true},{"activity":"USREP_IRI","address":"9415 West Forest Home ave\r\nSuite 101\r\nWI 53130","central":false,"comment":"IL","companyName":"Instrumentation Resources","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"815 520-0344","name":"Tim Fauser","phone1":"952-797-0220","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9245,"type":null,"uid":162,"usStates":"23","website":"www.irisensors.com","worldwide":true},{"activity":"USREP_TandM-Instruments","address":"15902 Soleil Ct\r\nAustin, TX 78734","central":false,"comment":"LA, OK, TX","companyName":"T\u0026M Instruments","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"512-532-6130","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"T\u0026M Instruments","phone1":"512-772-1553","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9246,"type":null,"uid":171,"usStates":"28,48,57","website":"www.tandm.net","worldwide":true},{"activity":"USREP_Process-Technology_NM","address":"3301 Wellington Place\r\nFarmington, NM 87402","central":false,"comment":"NM","companyName":"Process Technology, Inc.","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"505 948 3302","name":"Josh Gordon","phone1":"","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9247,"type":null,"uid":169,"usStates":"42","website":"www.process-tech.com","worldwide":true},{"activity":"USREP_Process-Technology","address":"4084 South 300 West\r\nSalt Lake City, UT 84107","central":false,"comment":"ID, MT, UT, WY","companyName":"Process Technology, Inc.","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"385 322 3053","name":"Mike Hallenbeck","phone1":"801 264 1114","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9248,"type":null,"uid":168,"usStates":"22,37,58,65","website":"www.process-tech.com","worldwide":true},{"activity":"USREP_Analectro","address":"3219 Route 38, Suite 2\r\nMt. Laurel, NJ 08054","central":false,"comment":"DC, DE, MD, NJ\r\nPA: 168 - 196","companyName":"Analectro","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"856 795 4597","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Al Reithmeier, Kevin Corcoran","phone1":"856 795 6676","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9249,"type":null,"uid":154,"usStates":"16,15,31,41,51","website":"www.analectro.com","worldwide":true},{"activity":"USREP_Dempsco","address":"7015 Corporate Way\r\nDayton, OH 45459","central":false,"comment":"KY, IN, WV, \r\nOH: 430-433, 437-459\r\nPA: 150-167","companyName":"Dempsco","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"937 434 8860","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Kurt Jacoby, Chris Jacoby","phone1":"937 436 1000","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9250,"type":null,"uid":160,"usStates":"27,24,63,47,51","website":"www.dempsco.com","worldwide":true},{"activity":"USREP_Preferred_Technical_Resources","address":"28525 Beck Road, Suite 109\r\nWixom, MI 48393","central":false,"comment":"MI, OH: 434 - 436","companyName":"Preferred Technical Resources","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"248 668 9059","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Philip Theaker, John Callaghan","phone1":"248 668 9051","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9251,"type":null,"uid":167,"usStates":"33,47","website":"www.ptrsales.com","worldwide":true},{"activity":"USREP_MCT_RAM","address":"2 W Main St, Suite 300\r\nVictor, NY 14564","central":false,"comment":"NY 120 - 123, 128 - 149","companyName":"MCT\/RAM - Corporate Office","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"585 461 2114","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"John Saporito","phone1":"585 461 2110","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9252,"type":null,"uid":165,"usStates":"43","website":"www.mctram.com","worldwide":true},{"activity":"USREP_MCT_RAM1","address":"4 Marina Lane\r\nE. Patchogue, NY 11772","central":false,"comment":"NY 100 - 119, 124 - 127","companyName":"MCT\/RAM - Lower New York and New York City","countries":"220","deZip":"","email":"efrain.arredondo@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"585-461-2114","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"John Gustafson","phone1":"631-286-7374","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9253,"type":null,"uid":166,"usStates":"43","website":"www.mctram.com","worldwide":true},{"activity":"USREP_IRI","address":"9415 West Forest Home ave\r\nSuite 101\r\nWI 53130","central":false,"comment":"WI: 530 - 539, 541 - 545, 549","companyName":"Instrumentation Resources","countries":"220","deZip":"","email":"steve.sochowski@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"414- 458-9325","name":"Jon Korus","phone1":"952-797-0220","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9254,"type":null,"uid":163,"usStates":"64","website":"www.irisensors.com","worldwide":true},{"activity":"USREP_IRI","address":"13774 Reimer Drive North \r\nMaple Grove, MN 55311","central":false,"comment":"IA, KS, MN, MO, ND, NE, SD,\r\nWI: 540, 546 - 548","companyName":"Instrumentation Resources","countries":"220","deZip":"","email":"friedrich.gebessler@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"952 797 0223","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Tony Marquette","phone1":"952 797 0220","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9255,"type":null,"uid":164,"usStates":"25,26,34,36,45,38,55,64","website":"www.irisensors.com","worldwide":true},{"activity":"USREP_Equipoise","address":"4059 N Haight Ave\r\nPortland, OR 97227-1332","central":false,"comment":"OR, WA","companyName":"Equipoise Technologies, LLC","countries":"220","deZip":"","email":"jerry.carayanis@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Ed Querfeld","phone1":"503 708 9969","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9256,"type":null,"uid":161,"usStates":"49,62","website":"www.equipoisetech.com","worldwide":true},{"activity":"USREP_CASECO","address":"508 Queens Court\r\nFranklin, TN 37064","central":false,"comment":"AL, AR, MS, TN\r\nFL: 324 - 325","companyName":"CASECO","countries":"220","deZip":"","email":"tim.prentice@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"615 591-7399","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"615 210-7311","name":"Tim DiPeri","phone1":"615 591-7399","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9257,"type":null,"uid":159,"usStates":"1,5,35,56,18","website":"www.caseco-inc.com","worldwide":true},{"activity":"USREP_CAL_Industrial_Sales_Co","address":"4749 Bennett Drive, Suite J\r\nLivermore, CA 94551","central":false,"comment":"CA: 932, 934, 936 - 961 (Northern Cal)\r\nNV: 892 - 898","companyName":"CAL Industrial Sales Co.","countries":"220","deZip":"","email":"jerry.carayanis@micro-epsilon.com","emailCc":"me-usa@micro-epsilon.com","fName":"","fallback":false,"fallbackPagesearch":false,"fax":"925 371 5673","hidePlz":false,"image":null,"internalNote":"","lName":"","map":null,"mobile":"","name":"Dave Richardson, Bob McCartney","phone1":"925 371 8125","phone2":"","pid":358,"products":"","regional":false,"showMail":false,"sorting":9258,"type":null,"uid":158,"usStates":"39,12","website":"www.calindustrial.com","worldwide":true}]
Contact
Micro-Epsilon USA Headquarters
Contact form
Your request for: {product}
* Mandatory fields
Click here to read our data privacy statement.

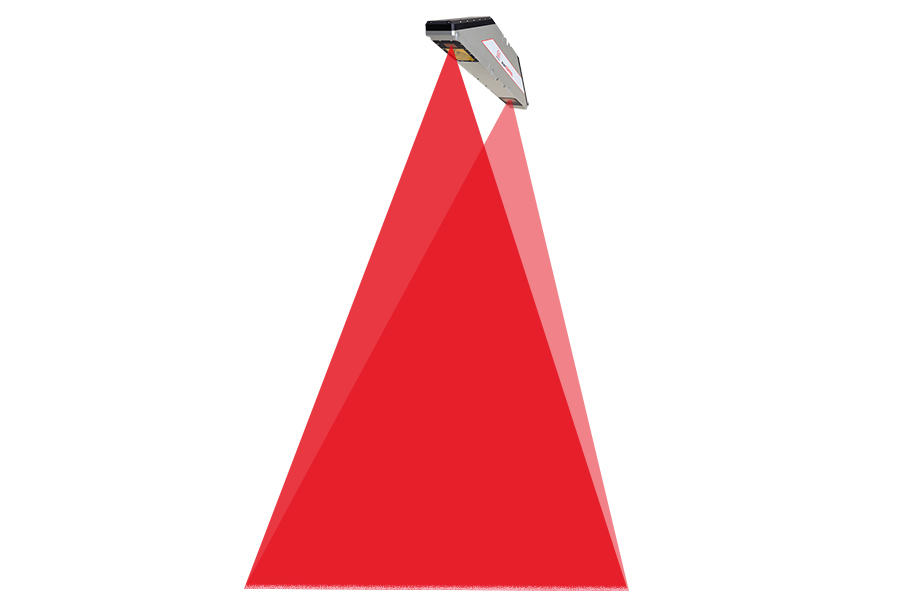

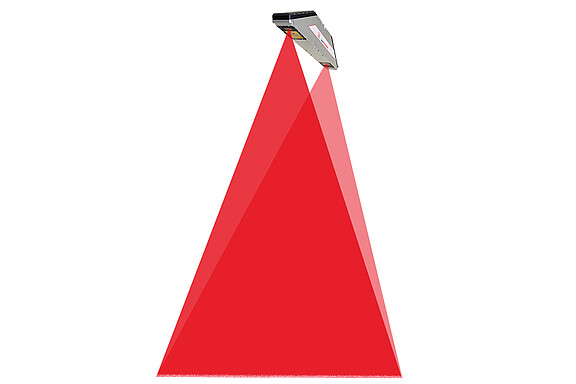

Large measuring range with 430 and 600 mm

The scanCONTROL 30x2 laser scanners are now also available with a large measuring field of 430 x 390 mm or 600 x 600 mm. This allows large measuring objects to be detected with high accuracy.

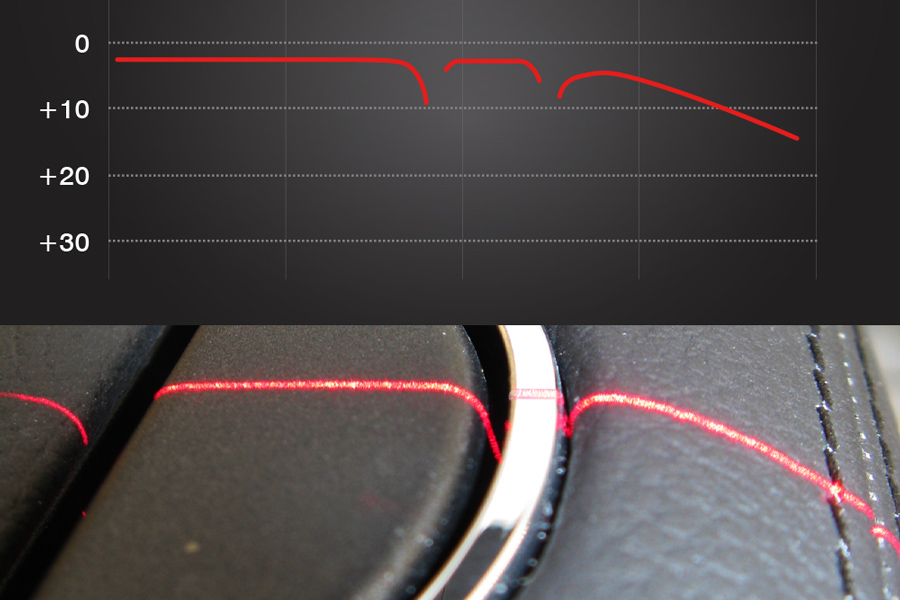

HDR Mode

Thanks to the Dynamic Range mode, the sensor generates accurate measurement results even on inhomogeneous surfaces.The exposure is performed simultaneously without time offset which enables reliable detection of rapidly moving objects.

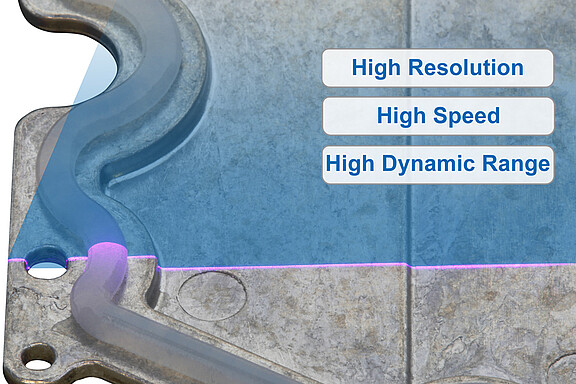

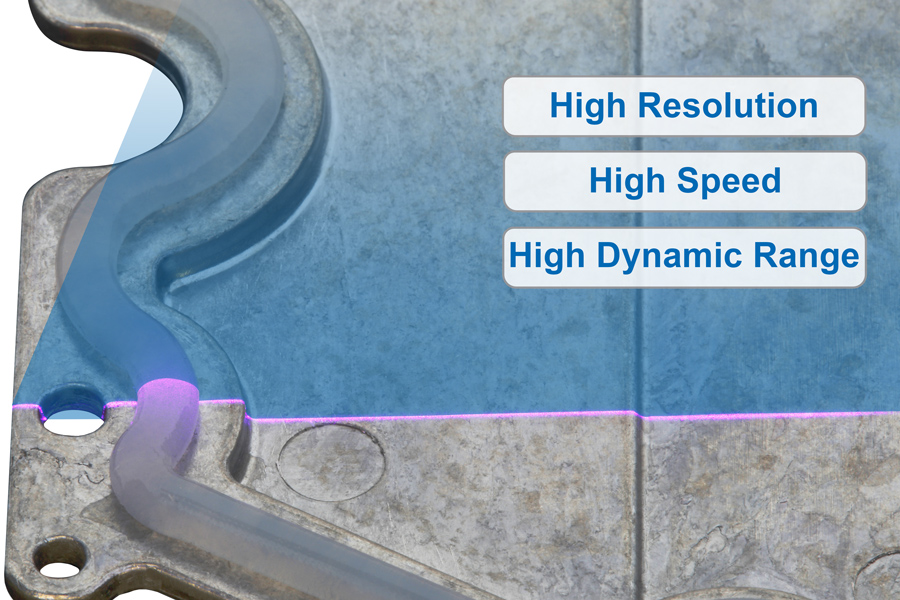

Fast measurement results with operation modes

Choose from three predefined operating modes for your specific measurement task: "High-Resolution" for maximum precision, "High Dynamic Range" for optimal profile detection on difficult surfaces and "High Speed" for ultra-fast measurements.

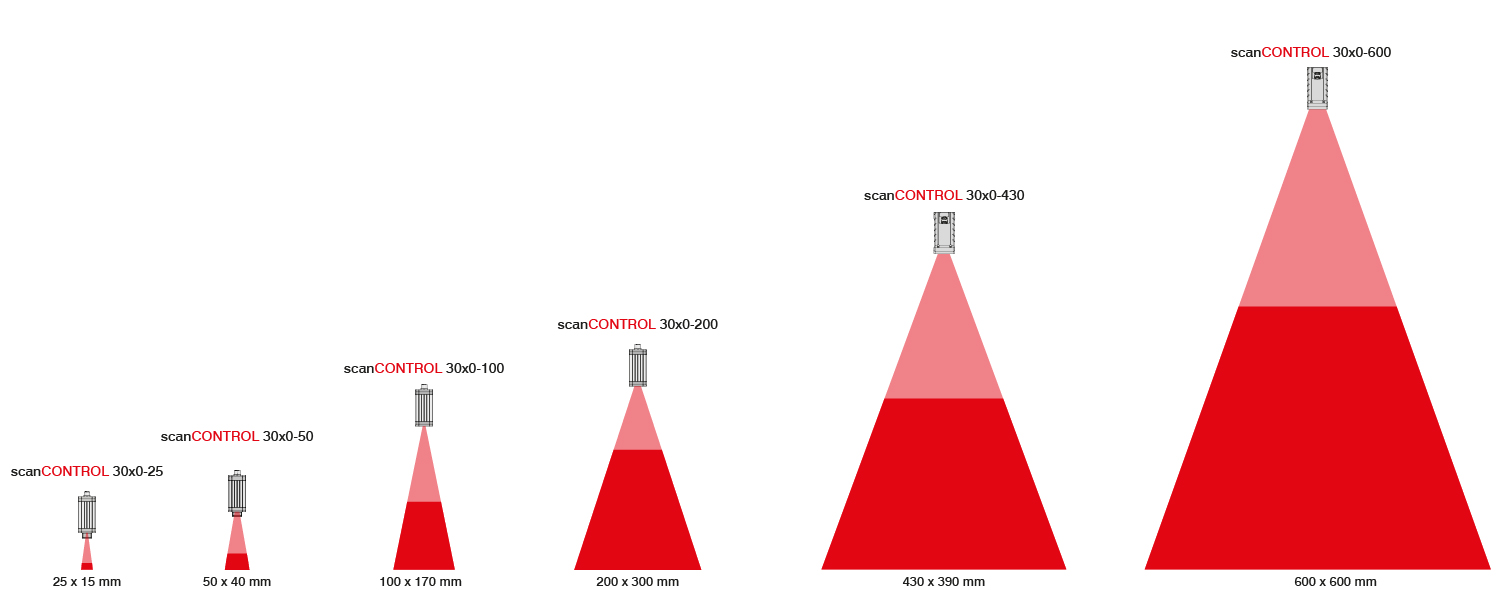

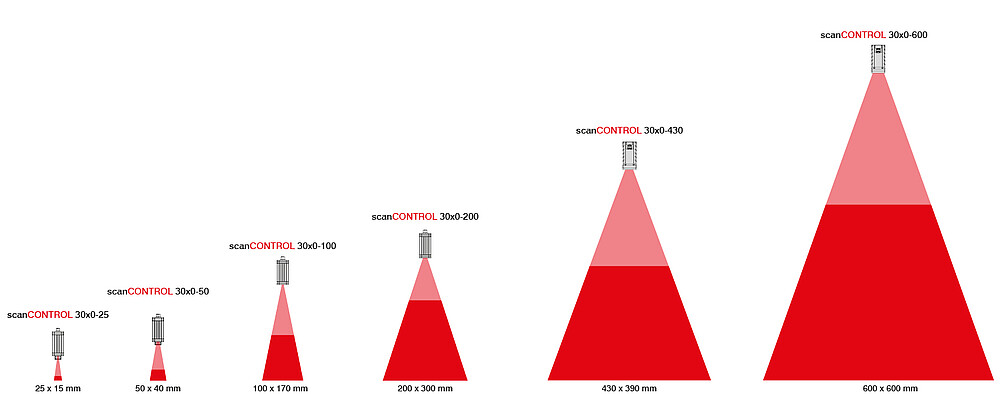

Available measuring ranges
